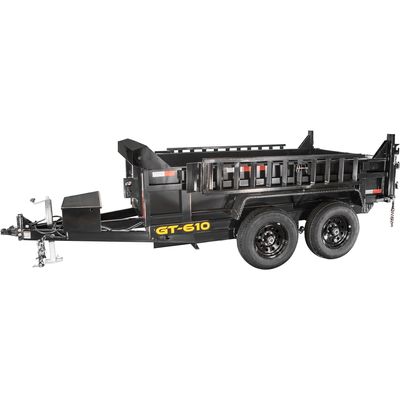

Griffin - Model GT-610 -Dump Trailer

• Coupler: 2-5/16" - Adjustable Coupler
• Tires: 15" Radial
• Power Unit: 12v DC Hydraulic Pump - (3200 PSI Pwr Up) (1500 PSI Pwr Down)
• Spare Tire Mount: Standard Mount
• Battery: Interstate Deep Cycle Marine Battery
• Ramps: 80" C-Channel Fender Mounted Ramps
• Jack: Adjustable 7000lb., Top Wind Drop Leg
• Lighting: Amber & Red LED
• Control Box w/Key Lock: Easy Front Access
• Wiring Harness: 3-Piece Plug & Play
• Fenders: 14ga. Formed Treadplate
• Electric Plug: 7-Pin Round
• Stake Pockets: 2" X 4" Tube
• Lift System: (2) 3" X 30" Hydraulic Cylinders
• Gussets: Front & Rear 2" X 12" Dimension for Wall Extension
• Floor & Walls: 12ga. Smooth Steel
• Safety Chains: (2) Forged Slip Hook - 5/16"x35" 11700lbs. Cap
• Integrated Tarp System: Fully Covered Housing
• D-Rings: (5) 5000lb. D-Rings Welded Into Floor
• Rear Gate: 2-Way Combination Spreader / Barn
• Axles: Tandem - EZ Lube w/Galvanized Components
• Paint Finish: High Gloss Black Powder Coat
• Suspension: Equalized Leaf Spring

* Specs, options, dimensions, brands are subject to change without prior notification.

• Style: Low-Pro
• Overall Length: 170"
• GVWR: 9990lbs.
• Length: 10ft. / 120"
• GAWR: 5200lbs.
• Width: 6ft. / 72"
• Curb Weight: 2720lbs.
• Tongue: 2" X 5" Tube
• Payload: 7270lbs.
• Tongue Weight (est.): 410lbs.
• Dump Capacity: 6000lbs.

* Specs, options, dimensions, brands are subject to change without prior notification.
