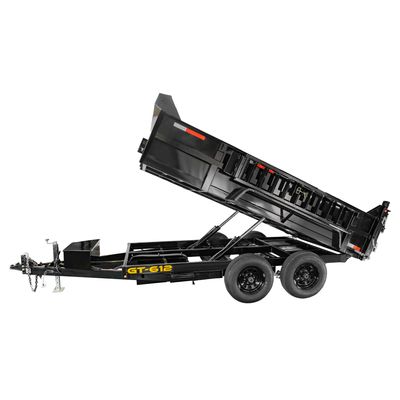

Griffin - Model GT-612 -Dump Trailer
FromGriffin Trailers
The GT-612 is our affordable 6X12 dump trailer and a mighty workhorse due to it`s 6000lb. payload capacity but still within 6-feet in width. The tandem axles provide a GVWR of nearly 10000lbs. while the adjustable coupler makes towing connection a snap!
Most popular related searches
- Coupler: 2-5/16" - Adjustable Coupler
- Tires: 15" Radial
- Power Unit: 12v DC Hydraulic Pump - (3200 PSI Pwr Up) (1500 PSI Pwr Down)
- Spare Tire Mount: Standard Mount
- Battery: Interstate Deep Cycle Marine Battery
- Ramps: 80" C-Channel Fender mounted ramps
- Jack: Adjustable 7000lb., Top Wind Drop Leg
- Lighting: Amber & Red LED
- Control Box w/Key Lock: Easy Front Access
- Wiring Harness: 3-Piece Plug & Play
- Fenders: 14ga. Formed Treadplate
- Electric Plug: 7-Pin Round
- Stake Pockets: 2" X 4" Tube
- Lift System: (2) 3" X 30" Hydraulic Cylinders
- Gussets: Front & Rear 2" X 12" Dimension for Wall Extension
- Floor & Walls: 10ga. Smooth Steel
- Safety Chains: (2) Forged Slip Hook - 5/16"x35" 11700lbs. Cap
- Integrated Tarp System: Fully Covered Housing
- D-Rings: (5) 5000lb. D-Rings Welded Into Floor
- Rear Gate: 2-Way Combination Spreader / Barn
- Axles: Tandem - EZ Lube w/Galvanized Components
- Paint Finish: High Gloss Black Powder Coat
- Suspension: Equalized Leaf Spring
* Specs, options, dimensions, brands are subject to change without prior notification.
- Style: Low-Pro
- Overall Length: 198"
- GVWR: 9990lbs.
- Length: 12ft. / 144"
- GAWR: 5200lbs.
- Width: 6ft. / 72"
- Curb Weight: 3580lbs.
- Tongue: 2" X 5" Tube
- Payload: 6410lbs.
- Tongue Weight (est.): 500lbs.
- Dump Capacity: 6000lbs.
* Specs, options, dimensions, brands are subject to change without prior notification.
