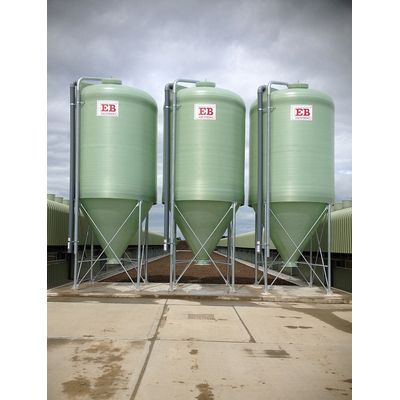

EB - Centre Discharge Silo
Centre Discharge Silos are designed for use with automated conveying systems. Offering up to 100 tonne capacities with a discharge height of 800mm. Bespoke sizes are also available to suit individual needs.
Most popular related searches
There are 2 diameter variations available in the centre discharge range:
- 85m Ø Centre Discharge Silo
- 35m Ø Centre Discharge Silo
- Designed in accordance with Euro-code norms, taking structural, wind, snow loads and terrain into consideration
- Manufactured with EB Equipment’s unique blend of polyester glass reinforced plastic
- Corrosion resistant and UV stabilised for long life
- Top access hatch incorporating ventilation fitted as standard
- Smooth interior with a 60° cone angle allowing consistent flow of content
- Single piece cone and body construction eliminates seams, joints and bolted sections
- Superior thermal insulation values when compared to steel silos
- Supporting steel work is fully welded from structural hollow section and hot dip galvanised
- Fill pipe includes long radius bends to allow smooth filling with minimum product damage
- Ventilation pipe maintains internal ambient temperature
Optional extras are available, including:
- Wide range of flanges/ fittings to suit specification
- Stainless steel valve
- Visual measure incremental scale
- Food grade
- WRAS approved
- Various monitoring/ telemetry options
- Ladders and platforms to BS4211
