shuliy - Model SL - Egg tray machine
1-Pulping system: hydraulic pulper, pulp pump, vibrating screen, refiner, mixer, etc. 2-Forming system: drum forming machine, mold, air compressor, air compressor tank, vacuum pump, vacuum tank, high-pressure water pump, steam-water separation pump, etc 3-drying system: hot air fan, dehumidifying fan, dehumidifying pipe, burner, combustion chamber, conveyor belt, chain, etc. 4-Packaging system: stacker, compaction equipment, packer, etc.
During the operation of the egg tray machine, it is inevitable that it will come into contact with water. This requires more maintenance of the egg tray machine to extend its service life. In mild cases, wipe with a sponge or cloth dipped in alcohol, volatile oil, Tiana water, alcohol, and toluene or acetone. The egg tray machine is formed by molding the pulp, and the pulp is adsorbed in the pulp pool. The pulp tray will be stained around the egg tray machine. These need to be cleaned in time, not just to ensure that the egg tray machine is clean. Debris can wear the machine.

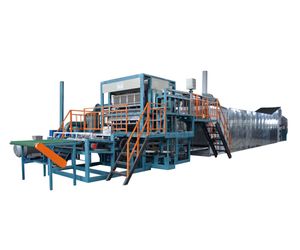

Egg tray machine equipment Roller pulp molding machine introduced advanced technology development. Because of its excellent performance characteristics, it has been well received by customers and recognized by society. The main body of the equipment is made of stainless steel, and the other parts are well-known domestic brands. We have developed automatic counting, automatic stacking, and automatic packing systems. This pulp molding machine has the characteristics of high productivity, low failure rate, and low energy consumption. Pulp molding systems use a variety of waste paper to produce high-quality molded fiber products. Changing different molds can produce egg trays, vegetable trays, fruit trays, canned trays, seed trays, etc.
The large octahedral rotary forming machine has a total of eight suction sides, forming an octahedron. The octahedron rotates intermittently above the paddle. Five suction molds are installed on each suction surface, and five egg trays can be produced with each rotation. The suction mold is suction-molded by means of back suction. The thickness of the egg tray is uniform, the density is high, and the strength is good. The wet blank transfer is done by a robot. The rotary molding machine is generally matched with the crawler conveyor automatic drying system, and the output can reach more than 5000 pieces per hour. The drying system of this machine adopts a 6-layer metal drying line, which is characterized by saving 30% energy and reducing floor space. Fuel can use natural gas, diesel, coal.
