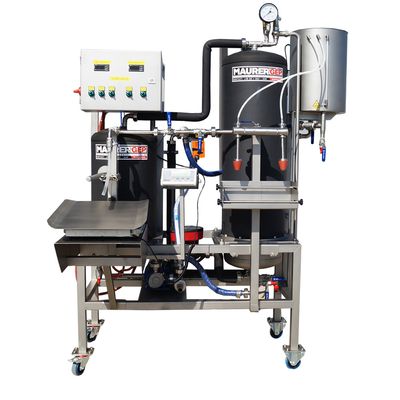

Maurer Gép - Model MPA 300 - Electric Pasteurizer
Maurer Gép specializes in the manufacturing of industrial machines for fruit and vegetable processing. Their equipment portfolio includes an array of processing machines such as bin tippers, sorting belts, fruit washers, mills and grinders, destoners, belt presses, jam cookers, and dryer cabinets. More notably, they offer a range of pasteurization equipment, including electric, gas, diesel, and tub pasteurizers, designed to efficiently process fruit juices and other products. These machines, like the MPA series electric pasteurizers, are crafted from high-quality stainless steel (WNr. 1.4301, AISI 304) ensuring durability and sanitation. The pasteurizers feature automatic temperature control systems with varying outputs up to 500 L/h, leveraging a heated water jacket to evenly distribute heat. The systems are built for simplicity with minimal maintenance requirements, and options like the BiB fillers and bottle filler modules enhance their flexibility for different production needs.
The operation is fully automatic. If the temperature of the juice falls below the desired temperature, the output port of the machine stops the filling and the juice circulates via the by-pass system until reaches the set temperature. When the set temperature is reached machine continues the juice circulation toward to filling system again. The juice spiral can be cleaned very simply by using a sponge ball. It requires minimal maintenance.
- BiB OR bottle filler modules
- manual BiB filler with digital scale OR double-head bottle filler module
- sponge ball for clean spiral
- Performance: 300 L/h (From 20°C to 80°C)
- Electric demands: 28 kW, 400 V, 32 A, triphase
- Material: WNr. 1.4301, AISI 304 stainless steel
- Dimensions: 1130x1750x1850 mm
- Weight: 230 kg
- IP65-certified electronic system
- Heat exchanger: electrical heated soft water jacket
- Connections: DN25 Stainless Steel Sanitary Union
- Level indicators for water and juice
- Thermometers
- Automatic temperature control, very simple to clean
- Automatic operation – flow-through type.
- Requires minimal maintenance.
