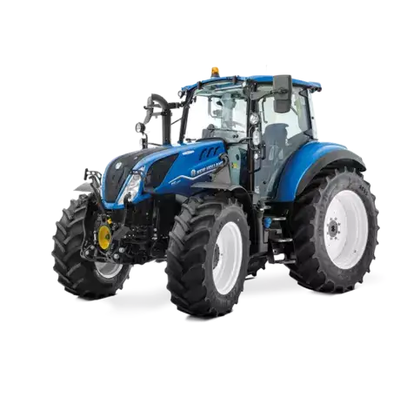

New Holland - Model T5 -Electro Command Tractor

EXCELLENT EFFICIENCY
The T5 Electro Command’s compact dimensions are home to the highly efficient FPT Industrial F5 3.6 Litre engine with ECOBlue™ Compact HI-eSCR 2 technology for Stage V compliance.

OUTSTANDING VERSATILITY
The wide frame front loader offers higher stability, even when working with the heaviest loads at maximum extension.

INCREASED PRODUCTIVITY
The new LED lighting package turns day into night for true around the clock working.

ULTIMATE COMFORT
With the T5 Electro Command range, you can benefit from New Holland’s renowned Terraglide™ front axle suspension, which helps ensure a silky smooth ride on even the roughest terrain.

• Common Rail is Common Sense
  A utility tractor needs to have power, and a new T5 Electro Command™ will certainly give you that. This 3.4L (207 cubic-inch) turbocharged F5D engine provides you with responsive power. This engine utilizes a high pressure common rail fuel injection system to enhance combustion, which is crucial for lowering emissions for Tier 4A compliance. New Holland introduced common rail to the agriculture industry in 2003. Today, these enhanced engines are the latest generation to reap the rewards of this technology, optimizing performance and quietness significantly in comparison to the previous Tier 3 NEF engines.
• Keep Going in Difficult Conditions
  When you ask for more power, your F5D engine will give it to you with an enormous torque backup of 35%. So, when you’re working in demanding conditions, like round baling high-moisture hay in uneven swaths, you’ll maintain both your forward speed and PTO speed while these large portions are fed into your baler.
• Clean Energy Leader
  In order to fulfill Tier 4A emissions standards, F5D engines are equipped with a Cooled Exhaust Gas Recirculation (CEGR) system and a Diesel Particulate Filter (DPF). Rest assured, Fiat Power Train (FPT) has ample experience with CEGR and DPF on passenger cars and commercial light-duty trucks. CEGR is the wise choice for the T5 Electro Command™ tractors because it keeps their physical dimensions small, which is what you expect from a utility tractor. CEGR also enhances engine density up to 36 HP per liter of displacement because fuel injection and CEGR are electronically monitored. Finally, the cooling requirements and costs associated with installing a CEGR system on a smaller engine are inherently lower, making this system a smart choice.

• 16x16 Electro Command Transmission
  With the Electro Command transmission, you say goodbye to your days of shifting through gears, and moving multiple levers. With Electro Command, one shift lever is all you need, and moving your thumb is all that’s required. On the side of the Electro Command lever are two buttons used to shift up and down through each of the 4 gears in each range. Use the side buttons in conjunction with the button on the back of the lever to shift between ranges B and C. This provides you with a total of 16 forward and reverse gears, or 32X32 with the optional creeper. The only time you’ll need to clutch is to move the lever forward or backwards between B and C ranges. To further simplify your experience, you can also use the three buttons located on the CommandArc console to perform the same functions as the gearshift lever. These buttons enhance your operating comfort when you need to change gears in ranges C and D instead of reaching forward to the gearshift lever.
• Ergonomic Powershuttle
  The column-mounted electrohydraulic Powershuttle can be conveniently operated without taking your hand off the steering wheel, helping to enhance your safety during loader work. You can conveniently regulate the aggressiveness setting, even while moving, with an the ergonomically positioned switch on the B pillar. A softer setting is perfect for general field work, while a more aggressive setting is great for near instantaneous direction changes during loader work.

Powerful And Precise High-Capacity Hydraulics
It’s important to have a tractor with powerful and precise hydraulics to ensure that you do a quality job. An open center system with tandem gear pumps is featured on all T5 Electro Command™ tractors. These two pumps work independently, one powering the high pressure circuit (implement pump) and the other powering the low pressure circuit (steering).

The main implement pump on T5 Electro Command™ tractors has a flow of 21.1 gallons per minute (gpm) 80 liters per minute (l/min) and the steering pump has a flow of 11.4 gpm (43 l/min). Together these two provide an impressive 32.5 gpm (123 l/min) of flow. A smaller implement pump can be installed reducing flow to 16.1 gpm (61 l/min). Additionally, a smaller steering and sevices pump with 10.0 gpm (38 l/min) can be installed as well combining total flow with the optional smaller pump to provide a moderate total flow of 26.1 gpm (99 l/min).

Two closed center rear remotes with quick release couplers are standard, but all T5 Electro Command™ tractors can be equipped with three remotes as an option.

Two mid-mount valves are also optional for you to choose from. The first option is a two-function mid-mount valve and joystick with one switch. The other option is an electrohydraulic, load-sensing, mid-mount valve that is controlled by the unique armrest-mounted electronic joystick.

Hefty Three-Point Hitch
Measured at the ball ends, the rear linkage on a T5 Electro Command™ tractor is capable of lifting 6,393 lbs. (2,900 kg.). For those who demand more lift capacity, one additional 50mm auxiliary lift ram can be installed to increase lift capacity to 8,809 lbs. (3,996 kg.) or two additional rams can be installed for an impressive lift capacity of 10,452 lbs. (4,741 kg.).

To control the three-point hitch, an ergonomic mouse is located within easy reach of the operator’s right hand. This mouse is an acclaimed New Holland design for one-handed operation. For instance, a convenient fast link lower button makes returning an implement back to work even easier, helping to speed up your productivity. Rear fender controls are also standard on all T5 Electro Command™ tractors, saving you the hassle of having to climbing on and off the tractor when hooking up implements.

A front three-point hitch with and without PTO is also available to increase your tractor’s versatility even more.
