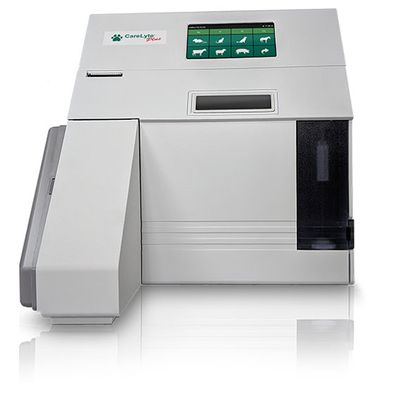

Diamond Carelyte - Model Plus - Electrolyte Analyzer for Veterinary Laboratories
The Diamond Diagnostics CareLyte® Plus Electrolyte Analyzer for is a completely automated system measuring Na+, K+, Cl-, Ca++ and Li+ in whole blood, serum, plasma and urine utilizing Ion Selective Electrode (ISE) technology. The Diamond CareLyte® Plus is uniquely designed with a powerful microprocessor allowing for easy interface with external LIS systems, operation with a new touch screen interface, bar code scanner and storage and retrieval of over 10,000 patient results. The system currently operates in over 12 languages and offers testing on Feline, Canine, Bovine, Equine, Swine and Ovine samples. The perfect analyzer for any size Veterinary Laboratory.
- 28 Sec Analysis
- 512 Tests/Hour
- 40,000 Results Stored
- Touch Screen Display
- Remote User Access
- Online Service Interface
User Input
- 5" Touch Screen
- Remote Access
Analysis Time
- 28sec(512/hour)
Calibration
- 2 Point every 4 hours 1 Point every sample On Demand
Languages English, Espanol, Francais, Deutsch, Indonesia. Italian, Polskie, PyccKHH, Tiirkce, portugues
Data Storage
- 10,000 Patient Results
- 10,000 QC Results per Level
Support
- Online Service Interface
Sample Size
- Whole Blood, Serum (95 pi)
- Plasma, QCs (95 pi)
- Urine (180 pi)
Connectivity
- LAN, Wifi. 4 USB ports
- RS232, LIS
- Number of Parameters
- 5 Total 4 (Simultaneously)
Veterinary Options
- Feline, Canine, Bovine, Equine, Swine, Ovine, Murine or Open
Power 12VDC.2.0A (self adjusting)
Size& Weight
- 92 mm (H) x 134 mm (W) x 46 mm (D) or 335x315x295 mm
- 3.70" (H) X 5.27" (W) X 1.81" (D)
Ambient Conditions
- Room temperature: 15-328C/60-90°F
- Humidity <85%
