Enamel - Model ECPC - Bio-Reactor Fermenter for Cow Manure Treatment
From Biogas Plant - Anaerobic Digester
ECPC assembled tank is made up of electrophoresis steel plate, special sealing material, self-locking bolt and other materials. It can be used for sealing storage of gas, liquid and solid in biogas engineering, sewage treatment, grain storage and petrochemical industry. In biogas project, assembled tank is a container for storage and fermentation of various organic compounds. A strong bind force is formed between the electrophoretic layer and steel plate. The electrophoretic layer can not only prevent the tank from corrosion but also offers excellent chemical resistance to a variety of acids and alkalines. In the meantime, it has an excellent abrasion resistance.
-
Most popular related searches
Performance and Characteristics
- stable quality, good corrosion resistance, long lifespan, high temperature resistence
- high strenth rubber cap with self-locking bolt, sealing tight, good antiseptic effect
- sealant with high temperature resistance, anti microbial corrosion
- quick installation, expansion and migration
Applicaple Working Process
- CSTR: Continuous Stirred Tank Reactor
- USR: Up-flow Sludge Reactor
- UASB: Up-flow Anaerobic Sludge Blanket
Physical Characteristics
- Coating color: The standard color is dark green or tailored according to customers’ requirements.
- Coating thickness: 0.25-0.45mm, both inside and outside is coated.
- Acid-alkali resistance: Work properly under pH value of 3-11.
- Adhesion: 3,450 N/cm.
- Elasticity: 500 kN/mm.
- Hardness: 6.0 (By Mohs scale)
Size

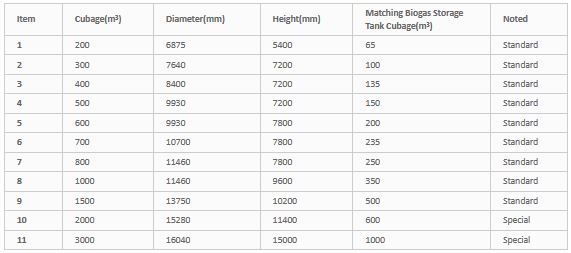

The size of each assembled tank is flexible (50m3 to 3300m3 is recommended). We can provide tailored services according to your requirments. The dimension of a standard 1000m3 assembled tank: φ 11.46m * H 9.6m.
