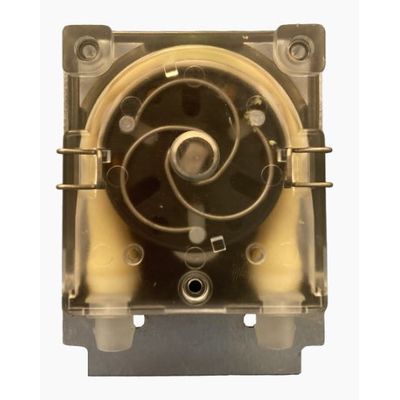

ESPANGO TeknofluorModel IPS30 -Peristaltic Pump for Food and Agricultural Applications

SHARE

The Peristaltic Pump IPS30 by Teknofluor is a versatile and robust solution designed for a variety of industrial applications, including food machinery, aromas, and agriculture. Engineered to operate under a pressure of 3 Bar, it offers adjustable flow rates, making it adaptable to different process requirements. The pump features a double-head design housed in a closed case, ensuring protected and efficient operation. It is available with either a brushless or stepper motor, providing options for enhanced precision and control. The IPS30 model employs a passant tube mechanism, which supports smooth and uninterrupted flow, essential for tasks involving precise dosage. Teknofluor also offers personalization options upon request, allowing the pump to be tailored for specific industrial setups, enhancing its integration into existing systems.

Most popular related searches

Peristaltic pump with adjustable fixed flow from 1.5 l/h to 70 l/h, ignition through external system, open case, 230 Volt - 24 VDC power supply.

  • Suction m. : 2
  • Input : 230 Volt 50 Hz - 24 VCC
  • Typical application : Machines
  • Dimensions : 85 x 105 x 135 mm
  • Delivery head m. : 10
  • Body material : PA + glass
  • Head material : PA + glass
  • Tubing material : Teknoprene TPV
  • Channels : 1
  • Weight Kg : 0.800
  • Flow rate : 1,5 - 70 l/h
  • Motor power : 30 Watt
  • Delivery head : 1 Bar
  • Speed regulation : Fixed
  • Reversibility : S
  • Rollers : 3
  • Body : IP00
  • Flow rate tolerances : ± 5%
  • Standard tubing : 7,5 x 10,7 mm
