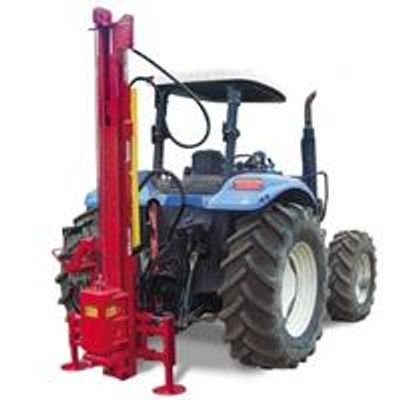

Kinghitter - Model Series 2 -Expander Post Driver

The Kinghitter Telescopic ‘€œExpander’€ Postdriver can fence in all terrains and environments with the capabilities of being able to fence in low wooded tree lines narrow lanes to fabricating High Deer fences and predator exclusion fences. The ‘€œExpander’€ now offers so much more for the fencer.

The ‘€œExpander’€ is able to used with the full range of accessories that Fairbrother Industries offer to fit all their Kinghitter postdrivers such as the Rock Spike Extractor Kit, the Rock Spike/Combo Auger Kit, or the Side Mounting Super Pro Base/ Terminator base that has a full 900mm side shift Multi Shift Base 500mm side shift and 150mm back shift . The ‘€œExpander’€ becomes another versatile postdriver from the stable of Fairbrother Industries Ltd.

• The Telescopic mast is calculated to allow the weight to drop at maximum gravitation speed and produce maximum kinetic energy that will drive the post directly into the ground.
• Patented Mast Design that allow the post to be driven to ground height.
• Simple User friendly Hydraulic operations.
• Big 340 kg weights producing up to 150,000 kpas of Driving Force.
• High Tensile ‘Live wound’ lifting cable for maximum strength and extra life.
• Easily mounts on standard three-point linkage.
• Hydraulic variable adjustment top link gives 10º forward and 20º rear movement and hydraulic side angle adjustment left or right of 20º quickly allows for accurate post placing on undulating terrain.
• Requires just one person to operate with easy and simple controls.
• Safety Post-cap ‘€œHands Free’€. This allows the operator to control machine with out have to put hands near the post while being driven into the ground.
• No Hinge to lower all operated from the ground raising and lowering to the required height.
• Optional Side Mount adaptor Frame kit for the ‘€œExpander’. Enables faster, quicker fence post placement by allowing the Tractor to be driven parallel to the fence lines.
• Options available in Series 2 (Rear Mounted) or Series 3 Models (Side Mounted)

• Mounting: 3 point linkage Cat 2
• Mast Length: 3.1 mtr - €“5.1mtrs
• Hammers: 340kg
• Impact: 560,000 kpa (80,000lb/sq in)
• Tilt Front/Back: 10/20 deg -30 Deg Total
• Tilt Side/Side: 20/20 deg.-40Deg Total
• Legs: Adjustable
• Top Link: Hydraulic
• Angle Adjustment: Hydraulic
• Safety Postcap: Yes
• Safety GuardOptional
• Safety Hammer Stop: Optional
• Max Post Height: 3.5mtr
• Min. Hydraulic Pressure: 14,000 kpa (2,000psi)
• Volume Oil/min.av: 50ltrs/min
• Storage Height: 3.5mtr
• Shipping Weight: 645kg
• Shipping Volume: From 2 cub mtrs
