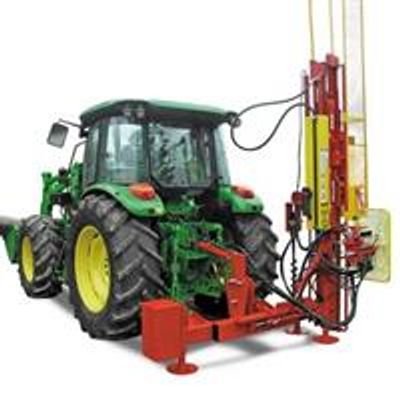

Kinghitter - Model Series 3 - Expander Post Driver

The Kinghitter Series 3 Telescopic ‘Expander’ Postdriver can fence in all terrains and environments with the capabilities of being able to fence in low wooded tree lines narrow lanes to fabricating High Deer fences and predator exclusion fences. The Kinghitter Series 3 ‘Expander’ now offers so much more for the fencer.

The Kinghitter Series 3 ‘Expander’ is able to use with the full range of accessories that Fairbrother Industries offer to fit all their Kinghitter Postdriver such as the Rock Spike Extractor Kit, the Rock Spike/Combo Auger Kit, has a full 450mm or side shift. The ‘Series 3 Expander’ becomes another versatile post driver from the stable of Fairbrother Industries Ltd.

• The Telescopic mast is calculated to allow the weight to drop at maximum gravitation speed and produce maximum kinetic energy that will drive the post directly into the ground.
• Patented Mast Design that allows the post to be driven to ground height.
• Simple User friendly Hydraulic operations.
• Big 340kg (750lb) weights producing up to 150,000 lbs of Driving Force.
• High Tensile ‘Live wound’ lifting cable for maximum strength and extra life.
• Easily mounts on standard three-point linkage.
• Hydraulic variable adjustment top link gives 10º forward and 20º rear movement and hydraulic side angle adjustment left or right of 20º quickly allows for accurate post placing on undulating terrain.
• Requires just one person to operate with easy and simple controls.
• Hands Free Safety Post-cap. This allows the operator to control machine with out have to put hands near the post while being driven into the ground.
• No Hinge to lower. All operated from the ground, raising and lowering to the required height
• Optional Side Mount adaptor Frame kit for the Expander. Enables faster, quicker fence post placement by allowing the Tractor to be driven parallel to the fence lines.

• Mounting: 3 point linkage Cat 2
• Mast Length: 3.1mtr - 5.1mtrs- 10"-16"
• Hammers: 340kg - 750lb
• ImpactFrom 150,000 lbs (33.975 kg)
• Tilt Front/Back10/20 deg -30 Deg Total
• Tilt Side/Side20/20 deg.-40Deg Total
• legsAdjustable
• Top LinkHydraulic
• Angle AdjustmentHydraulic
• Safety PostcapYes
• Safety GuardOptional
• Safety Hammer StopOptional
• Max Post HeightSee brouchure
• Min. Hydraulic Pressure2000 PSI (12,340 kPa)
• Volume Oil/min.av8GPM 50ltr/min
• Storage Height: 3.1mtr - 11"6
• Shipping Weight: 1030lb-1200lb (467-544 kg)
• Shipping Volume: From 21 cu. ft (0.6 cu. m)
