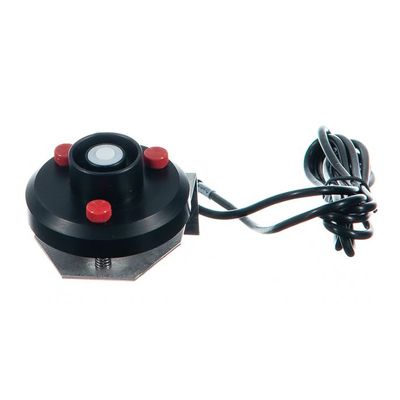

Spoton - Model 38880 - External Par Sensor
An affordable sensor that provides scientifically accurate photosynthetic active radiation (PAR) light readings under any light source including LED!
- SPOTON® SENSOR TECHNOLOGY
- SpotOn® Sensor Technology is a proprietary filter stack coupled with an integrating light sensor to provide a flat PAR response from 400 to 700 nm under both natural and artificial light sources.
- PROVIDES ACCURATE PAR LIGHT READINGS FROM ANY LIGHT SOURCE:
- Full sun to full shade indoors or outdoors.
- Artificial light sources (LED, High Pressure Sodium, Metal Halide, Florescent, Halogen...).
- INTEGRAL BULLS EYE LEVEL FOR EASY SETUP WITH INCLUDED SPRING-LOADED JACK SCREWS.
- INCLUDES ALL MOUNTING HARDWARE (SCREWS, U-BOLT, 90° BRACKET, AND CABLE TIES).
Range: 0 to 3,000 u.molm-2s-l
Ourput: 0 to 3.0 volts corresponding to 0 to 3,000 u.mol with linear relationship. Valid output 4ms after power on. With continuous power reading is updated every 6.5s.
Input Power: 3.00 volts Regulated
Power Draw: 1.3 mA
Accuracy: +/- 5% (each sensor is calibrated to a NIST traceable light sensor on a broad-spectrum light source)
Azimuth Error: +/-1% over 360`
Water Resistant: IP-65 rated for outdoor use
Operating Environment: 0-130°F(-18°C) with 0-100% RH
Sensor Cable: 6ft (1.8m) shielded cable with 2.5mm Stereo Plug
Size & Weight: 2.5in(6.4cm) Dia x 1.08in(2.8cm) H 0.25lb (113g)
Response Data: Spectral Response
