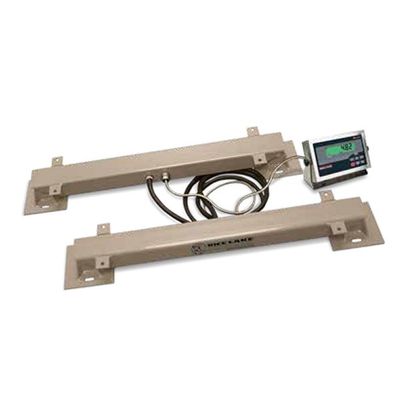

Farm Bars

Safe Overload: 150% Full-Scale Output (FS): 3mv/V nominal** Maximum Excitation: 15 VDC Non Linearity: 0.02% FS Hysteresis: 0.02% FS Thermal Sensitivity Shift: 0.0008% of reading/° F Thermal Zero Shift: 0.0015% FS/° F Side Discrimination: 1000:1 Bridge Resistance: 350 ohms  Temperature Range: -40 to 111°F (-40 to 44°C) Cable Configuration: 8 ft between bars and 12 ft for the indicator Warranty: Two-year limited warranty ** Output is standardized for each model of load bar, consult factory for details.
