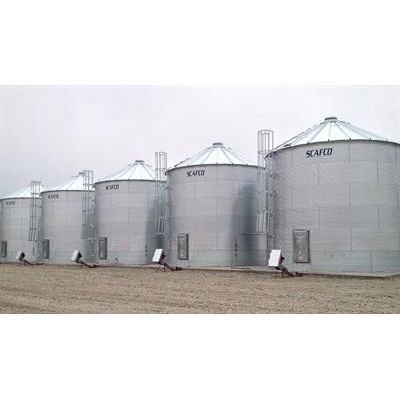

SCAFCO - Farm Grain Bins

Available on all bins, SCAFCO’s walk in door opens to 28″ x 60″ (711 mm x 1524 mm). This door includes a welded frame, reinforced outer door panel and three hinged inner flaps with positive locking bars. Doors bolt into place easily with corrugated welded door jambs. A heavy-duty version is available for all bins.

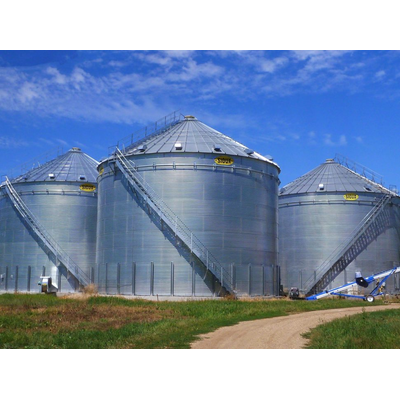

SCAFCO provides a complete ladder system inside and outside the bin with safety cages and rest platforms.

All SCAFCO grain bins are furnished with heat- treated SAE grade 8 (equivalent to DIN 10.9) bolts. Our high strength bolts will meet and exceed 3000 hours to corrosion in a salt spray test compared to other bin manufacturers that use zinc dichromate coated bolts that only meet or exceed 108 hours.

All bins 12’ (3.66 m) diameter and larger feature safe and convenient roof hatches. Our hatches open to the right rather than uphill on the roof, facilitating safer entry and egress from the bin. The inside dimension measures 18” x 30” (460 mm x 760 mm). The hatch is positioned adjacent to the roof ladder cleats or roof stairs and meets or exceeds emerging standards previously unaddressed in current grain bin designs. SCAFCO hatches are weather-tight and factory installed with a lockable latch.

SCAFCO’s one piece deep-rib corrugated roof panels offer outstanding load-carrying capabilities, providing durability under heavy snow, ice loads and other extreme weather conditions. Roofs bolt together rapidly in the field with each roof panel securely fastened to wall panels with steel clips. Heavy-duty 3 ¼ (82 mm) high box-ribs provide strength and rigidity for each roof panel. Roofs have either 24 or 36 corrugated roof panels (depending upon bin diameter) and a weather-tight closure.

SCAFCO roof ladder cleats are galvanized angles bolted to roof panels, allowing easy access to the inspection hatch and peak cap. SCAFCO’s roof cleats are standard for grain bins ranging from 12’ to 42’ in diameter (3.66 m to 12.80 m).
