Phason - Model AFXMINICONNECT2 - Farm Management and Control Modular

SHARE

The AutoFlex Mini Connect II by Phason is a comprehensive farm management solution designed to control and monitor various aspects of agricultural operations. Tailored to meet the needs of both large-scale and small-scale facilities, this system enables users to manage ventilation, supplemental cooling, heating, lighting, and feeding. Its modular design allows for customization based on individual farm requirements, with smart modules that can control variable or fixed-speed fans, air inlets, curtains, lighting, feed loops, and more. It offers real-time data monitoring and remote access via Ethernet or Wi-Fi, providing flexibility and peace of mind. Expansion options are available to increase control capacity, making it scalable as your operation grows. The system also supports various sensors to monitor environmental conditions, ensuring optimal conditions for livestock and crops. Notifications are sent via text or email for immediate alert response. With its combination of flexibility, technological integration, and robust design, the AutoFlex Mini Connect II is a valuable addition to any modern farming operation.

Most popular related searches
farm management
farm management system
farm management control
farming operation
farming system
farming control
livestock
agriculture monitoring
Your farm management solution

AutoFlex Connect II brings flexibility and versatility to your fingertips. With AutoFlex Connect II, you can control and manage ventilation, supplemental cooling, heating, lighting, feeding, and more.

Customizable to your farm operations

AutoFlex Connect II is modular and adapts to your needs, whether you are running a large operation with several dozen sites or a small facility with one or two buildings. With Phason’s AutoFlex Connect II, you can build out your control as you determine what additional inputs and outputs you need. AutoFlex Connect II becomes more economical as your operation expands.

Smart Modules are available to control variable or fixed-speed fans, air inlets, curtains, lighting, feed loops, and more. On the input side, you can choose to monitor conditions such as temperature, humidity, ammonia, carbon dioxide, and more.

One size does not fit all

Each farm has its own needs. With AutoFlex Connect II, you have two sizes of controls to choose from. This allows you to choose the right control for your application.

  • AFX-CONNECT2: 14 modules
  • AFXMINICONNECT2: 6 modules

Expansion Boxes are available to add additional capacity.

Remote connectivity

Network your AutoFlex Connect II controls using Ethernet or Wi-Fi and then access them from anywhere, using any web-enabled device. Monitor and analyze data in real-time or quickly respond to issues.

Leave the farm knowing that you are just a few clicks away from your controls. Relax knowing that if a problem occurs and an alarm is triggered, you will be immediately notified by text message or e-mail.

  • Ventilation
    Customize to provide optimum environmental conditions
  • Evaporative Cooling
    Avoid heat stress with supplemental cooling and maintain production
  • Lighting
    Schedule lighting programs to achieve excellent production results
  • Feeding
    Manage feed schedules and inventory
  • Analytics
    Create charts and reports to help you understand and manage your operation
  • Alarms and Notifications
    Configure alarms and notifications that you want sent to your phone and e-mail

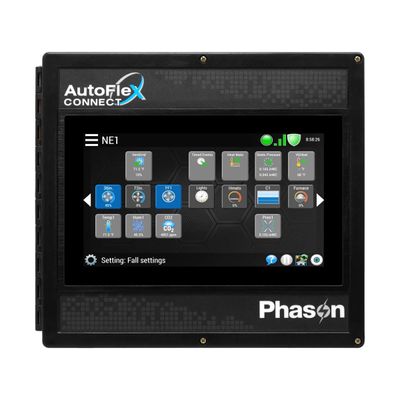

  • Intuitive user interface
  • 10-inch capacitive touch display
  • Local configuration and monitoring at the control using the touchscreen
  • Remote configuration and monitoring from any web-enabled device
  • Smart Modules for controlling equipment and monitoring sensors
  • Available Expansion Boxes to increase module capacity
    • EXPANSION-14: 14 modules
    • EXPANSION-6: 6 modules
  • NEMA 4X enclosure (corrosion-resistant, water-resistant, and fire-retardant)
  • CE certification
  • QPS certification
  • Limited warranty
  • Two ventilation control modes: traditional staged and VentGrid™ combi table
  • 16 zones available for control and monitoring
  • Monitor or manage:
    • Temperature
    • Humidity
    • Carbon dioxide (CO2)
    • Ammonia (NH3)
    • Static pressure
    • Barometric pressure
    • Wind speed
    • Wind direction
    • Rain
    • Light level
    • Current
    • Digital switches
    • Pulses
    • THI
    • Wind chill
  • Full analytics package with customizable reports sent at your convenience
  • Control power
    85 to 264 VAC, 50/60 Hz
  • Alarm relay
    0.4 A at 125 VAC, 2.0 A at 30 VDC, resistive load
    0.2 A at 125 VAC, 1.0 A at 30 VDC, inductive load
  • Actuator Modules (ACT-1 and ACT-1V)
    15 A at 120/230 VAC, general-purpose (resistive)
    1/2 HP at 120 VAC, 1 HP at 230 VAC
    0-10 V DC signal feedback (ACT-1V only)
  • Relay Module (RM-2)
    Loop Drive (AFX-FEED-LOOP)
    20 A at 120/230 VAC, general-purpose (resistive)
    1 HP at 120 VAC, 2 HP at 230 VAC
  • Three-Phase Relay Module (RM-2-3PH)
    1 HP at 120 VAC, 2 HP at 230 VAC
    230 VAC coil, 70 VA inrush, pilot duty
  • Relay Module (RM-4)
    15 A at 120/230 VAC, general-purpose (resistive)
    1/2 HP at 120 VAC, 1 HP at 230 VAC
  • Variable AC Module (VAC-1)
    7 A at 120/230 VAC, general-purpose (resistive)
    4.9 FLA at 120/230 VAC, PSC motor
    1/2 HP at 120 VAC, 1 HP at 230 VAC
    800 W at 120 VAC, 1600 W at 230 VAC
  • Variable Chimney Module (VCM-DC)
    Variable DC Module (VDC-4)
    0 to 10 VDC, 2K Ω load
