Bentall Rowlands Storage Systems Limited

Feed Hoppers

0

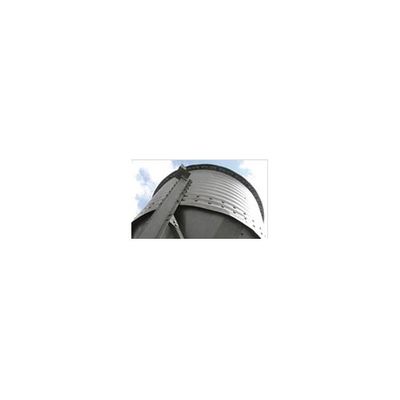

The Apache feed hopper comes in a range of sizes, 2m to 4m silo diameter and from 0.5 ring to 4 rings in height. This range of silo is designed for the storage of granular feed and the capacities range from 2 tonnes to 50 tonnes. The silo sidewall and cone utilises the same galvanised steel as our industrial range of hopper bottom silos. G600 galvanised steel, shallow corrugated sidewall sheets, grade 8.8 spun galvanised fixings and dome headed bolts in the cone are just some of the standard features which ensure our range of silos will pass the test of time.

Bentall Rowlands offers a wide range of optional equipment including: filling and exhaust pipes, auger discharge box, manual hand slide, rack & pinion gates with hand wheels or chain wheels, side access ladders, roof ladders, 15 or 30 degree roofs and 45 or 60 degree cones.

The 4 metre diameter Apache can also be supplied with a splayed leg arrangement allowing it to give a 4.5 metre tall by 3.0 metre wide drive through area for load out applications. A viewing platform with access ladder can be supplied with an extended control rod rack & pinion gate for easy operation.

All designed, drawn, programmed and manufactured at one location which allows Bentall Rowlands to cope with special requirements if the customer so desires.
