Tow and Fert - Model Multi 1000 -Fertiliser Sprayers

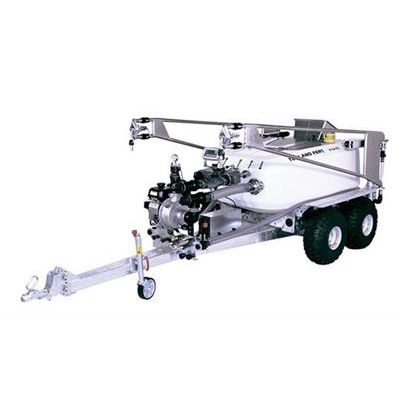

The Multi 1000 is the trailed model that is suitable to be towed by either a ute or a tractor.
This machine is completely stand-alone not requiring any hydraulics or other power source. With its own on-board petrol engine and a low centre of gravity, the Multi 1000 is a very versatile machine on all types of farms. With a 1000 litre capacity this machine can easily dissolve urea in cold water, or hold 1 tonne of dry fine particle product in suspension. The Multi 1000 features our patented recirculation boom design that delivers up to a 22 metre spread through just 2 large nozzles. This is so product can’t settle out in any dead areas found on typical boom sprayers. Fitted with a 100% Stainless Steel trash pump and a silicon carbide mechanical seal – specifically designed for this application, the Tow and Fert is built to last. All fittings are removable without a toolbox and can be done in the field. Depending on application rate, the Multi 1000 has the capacity to cover approx. 10 hectares in one load.
- tank volume 1000 litres (255 gallons)
- spray width Up to 22 metres (72 feet)
- application rate Variable from 50 – 500 litres/hectare
- attachment style Trailed
- attachment vehicle Tractor or 4wd Ute
- agitation powered by On board Petrol Engine
- area per load approx. 6-12 hectares (15 – 30 acres)
- pump model Metalform Stainless 3” Centrifugal Trash Pump
- pump performance 1300litres per minute at 0 metres lift. Max lift = 4 metres
- pump powered by On board Petrol Engine
- dry weight 650kg
- full weight 2,200kg
- size 4.30m (L) x 1.80m (W) x 1.70m (H)
- tow hitch 50mm Coupling, Tractor Tongue
