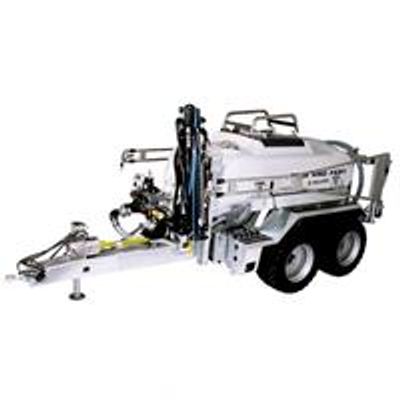

Tow and Fert - Model Multi 4000 -Fertiliser Sprayers
The Multi 4000 is the largest of the range can cover a huge 150 hectares per day.
This unit is designed to be towed by a tractor of minimum 110hp. It uses the PTO at 1000rpm for mixing & agitation and hydraulics to run the specifically designed 3” trash pump found on all other Tow and Fert models for spraying. With the patented agitation technology in the tank, you can simply empty 1 tonne bags of fine particle fertiliser directly into water without any pre-mixing or messy work. Combined with the optional crane, you can load 5 tonne of fertiliser product into the Tow and Fert in just 15 minutes. With up to a 24 metre spread, the Multi 4000 can cover 1 hectare in just 3 minutes at 12 km/hr (8 mph). With a capacity of up to 40 hectares per load, this Tow and Fert makes light work of a large job.
- tank volume 4000 litres (1060 gallons)
- spray width Up to 24 metres (78 feet)
- application rate Variable from 50 – 500 litres/hectare
- attachment style Trailed
- attachment vehicle 110hp tractor or greater
- agitation powered by PTO @ 1000 RPM
- area per load approx. 20-30 hectares (50 – 100 acres)
- pump model Metalform Stainless 3” Centrifugal Trash Pump
- pump performance 1300litres per minute at 0 metres lift. Max lift = 4 metres
- pump powered by Hydraulics – 55litres/min
- dry weight 3,300kg
- full weight 10,000kg
- size 5.90m (L) x 2.30m (W) x 2.50m (H)
