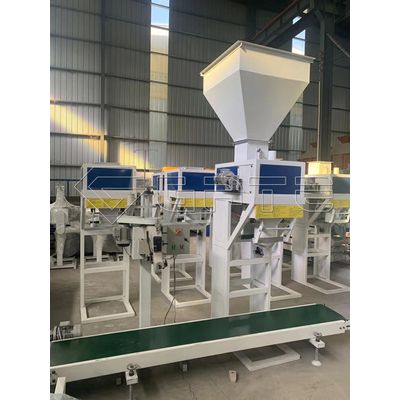

Gate - Fertilizer Ton Bag Packing Machine for Fertilizer Organic Production Lines
The utility model has the advantages of high measuring precision, large packaging capacity, environmental protection of sealing agent, high degree of automation, large production capacity, wide application range, simple operation and convenient decoration. The equipment is designed for powders and granular materials such as cement, non-metallic mineral powder, chemical raw materials, etc. It is widely used in building materials, chemicals, food, feed, minerals and other industries.
Most popular related searches
organic fertilizer plant
fertilizer plant
organic fertilizer product
fertilizer bagging system
organic fertilizer production
fertilizer
fertilizer bagging
fertilizer product
fertilizer machine
fertilizer production
- Packing accuracy: dynamic weighing ±0.5%
- Packing specification: 1T-2T/bag
- Working power supply: Ac380V, 50Hz, 3KW
- Air source pressure: 5-8Mpa
- Air consumption: 0.6m3/h Relative humidity: ≤80%
- the external dimensions: 4200X1600X2800mm
- Ambient temperature: -10 to 40 ° C
- Packing speed:: granular 20T / h powder type 15T / h
- Bag type: all kinds of open bags
- It has automatic peeling, automatic zero calibration, high sensitivity, and online networking for network management. When packaging, only need to manually hang the bag, given the signal, the equipment can automatically complete the bag, blanking, metering, and the entire working cycle of automatic are sealing and loose bag after reaching the weight.
- The weighing system is controlled centrally by PLC or single-chip microcomputer. The electronic scale is metered and can directly set the required weight. It has set value of thickness and feeding, automatic peeling, automatic zero orrection, automatic drop correction, out-of-tolerance alarm and fault self. Diagnostics and other functions.
- Weighing system is electronic scale platform scale measurement, using full-board digital calibration and parameter setting with weight accumulation display and automatic peeling, automatic and zero correction, automatic dropping and other functions, high sensitivity, strong anti-interference ability.
- The instrument is equipped with a communication interface for easy online connection, real-time monitoring and network management of the packaging machine. The ton bag packaging machine has a wide application range, high packaging precision, good performance and high quality of the ton bag packaging machine, and is used by customers.
