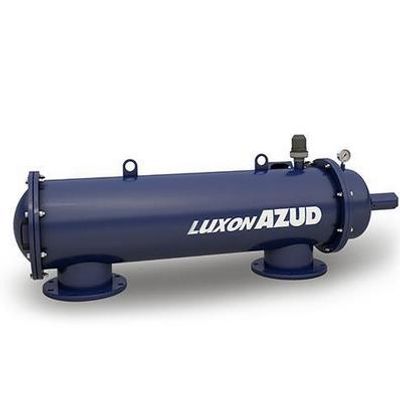

AZUD - Model LUXON LXE - Filters
We are an extraordinary organization betrothed in manufacturing, exporting and supplying AZUD Filters. This category consists of drip irrigation filter, modular filter system, automatic screen filters, irrigation water filters and filtration system. With high precision, these filters are manufactured with the use of optimum quality raw materials and the latest techniques. Used for various operations in agriculture and horticulture, the provided filters consist of electric motor driven through centrifugal force. Additionally, clients can avail these AZUD Filters at reasonable prices from us.
- Form Solid
- Material Metal
- Application For Agriculture
- Supply Ability : 10000 Unit Per Week
- Supply Ability : 10000 Unit Per Week
- Minimum Order Quantity10 Unit
- Price700 Onwards INR/Unit
- Product TypeLUXON LXE
- FormSolid
- MaterialMetal
- ApplicationFor Agriculture
- Payment TermsCash in Advance (CID), Cash Advance (CA)
- Supply Ability10000 Unit Per Week
- Delivery Time1 Week
- Packaging DetailsCarton
- Main Domestic MarketAll India
Resistance
- Azud Luxon Lxe Has Temperature Capacity To 60C (140F)
- Large Screen Surface
- Up To 21,300 Cm2 (3300 Sq.Inch)
Resistant Material
The Screen Is Made Of High Quality Stainless Steel Which Is Very Resistant To Corrosion.
Energy Efficient
The Consumption During The Flushing Cycle Is Minimal
Wide Filtration Range
Available Screen Ranges From 10 To 1000 Micron
Versatility
Have Sizes From 3to 20
Time Saving
The Filtration Process Continues During The Flushing Cycle
Easy Installation
The Filters Are Delivered Ready To Be Installed. Weave Screen Element.
Additional Information
Azud Luxon Lxe Filters Are Mainly Used For Continue Supply Of Filtered Water Even During The Flushing Cycle.
The Water Flows Into The Filter Through A Pre-Filter, And Then To The Inside Of The Screen. After This, Water Flows Through The Screen And The Particles Which Are Retained On The Inside Of The Screen Filter Element. The Filtered Water Then Flows Out Through The Outlet Manifold. Flushing Cycle Starts, When The Pressure Differential Increases To The Pre-Determined Level. A Hydraulic Valve Opens On The Drainage Outlet Activating The Azud Flex Protect System Which Generates An Helical Movement Along The Screen To Vacuum Up The Captures Particles From The Screen. The Captured Solids Are Expelled Through The Drain Valve. It Has Flushing Time That Is Pre-Determined By The Controller. When The Cycle Is Complete The Flush Valve Closes And The Process Ends. The Whole Process Uses A Minimal Amount Of Water.
