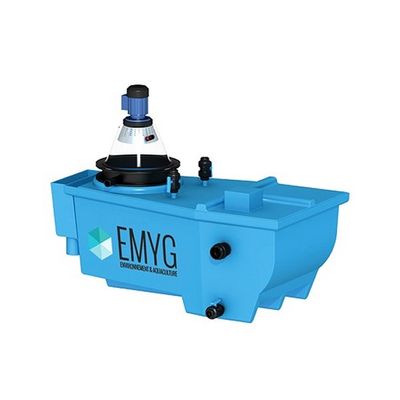

EMYG PROTOS - Filtration System

Oxygenation
Product holding ponds are viable only if a number of parameters are met. Like the SKIM, the PROTOS oxygenates the holding pond and the products (based on the INNOPURE® technology). Thanks to its dual gravity return (Ø90), the PROTOS better distributes the treated and oxygenated water.

Filtration
Working on the same principle as the SKIM, filtration is the primary function performed by the PROTOS. All suspended matter – down to micro-organisms (bacteria etc.) – is trapped by the micro-bubbles (specificity of the INNOPURE® technology) generated by the water-air exchange. The PROTOS is now establishing itself on the market as an alternative for smaller businesses without the space for the SKIM.

Connection to multiple ponds
Positioned outside the pond, the PROTOS is not directly immersed and offers the possibility of connecting the treatment system to multiple ponds by means of an adapted hydraulic circuit.

The PROTOS is made up of 2 motors and features minimum consumption and limited maintenance

• Marine bronze immersed hydro-injector
• Plastic extraction pump with stainless steel shaft
• Centrifugal system

Electricity consumption under 1.5 Kw/hr
