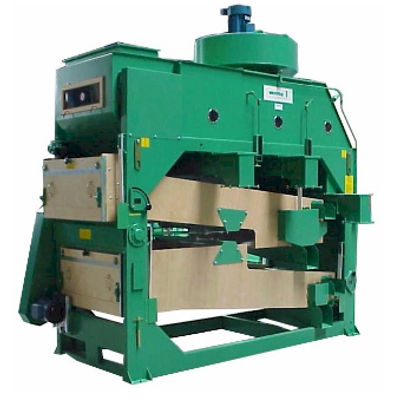

Westrup - Model FAU -Fine Modular Cleaner
FromWestrup ApS
The FAU fine cleaner is first and foremost designed to be the main machine in seed and grain cleaning plants. The FAU fine cleaner is designed to be the primary air/screen cleaner for ultra- precision separation of impurities from high value seed. For capacity and all other specific information see the back page.
Most popular related searches
grain cleaning system
seed grain cleaning system
seed grain cleaning
grain cleaning
seeding
seed grain
grain planting
seed cleaning
seeding machine
seed planting
The FAU fine cleaner offers the below features:
- Integrated inlet section with feed roll with variable drive.
- Aspiration chamber with integrated screws and outlets for removed product on the right-hand side of the machine.
- Screen section consisting of two sieveboats with screen flow 2-2 (upper sieveboat with two screen layers and lower with one return plate and two screen layers).
- All screen segments with rubber ball cleaning.
- Final aspiration channel with inspection window.
- Prime product outlet placed under the machine for the entire width of the machine.
- Common drive of feed roll, sieveboats, and screws.
The machine is of steel construction with sieveboats of laminated wood.
- Feed roll in various constructions (rubber covered, with gear variator 0-38 rpm, with fixed drive)
- Vibrator feeder (instead of feed roll)
- False air valve at top of machine or for adjustment from floor level
- Screen flow 2-1-2 or 2-3
- Adaptive aspiration control system (AAC)
- Fan with motor
