Wolfe Ridge - Firewood Conveyor Systems

SHARE

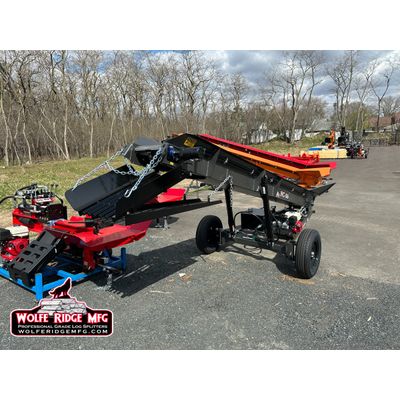

The Wolfe Ridge Firewood Conveyor is designed to efficiently handle and transport firewood with ease. The conveyors are available in four sizes ranging from 16 to 40 feet in length. Each unit is constructed with precision at their facility in Eau Claire, Wisconsin, ensuring durability and reliability. The conveyors are equipped with a self-contained hydraulic system driven by a dependable Honda GX200 gas engine. This feature allows for both hydraulic forward and reverse movement, with added speed control for the conveyor chain. The unit also supports hydraulic height adjustment for ease of use. Additionally, it includes robust features like heavy-duty welded paddles, an 81X conveyor chain, and grizzly bars with a chip chute. The maximum exit height varies between models, accommodating different operational needs and is designed to work seamlessly with existing log splitters and processors, optimizing operational efficiency.
Most popular related searches
firewood conveyor
commercial log splitter
firewood
log splitter
firewood processor

Move firewood away from your work area easily with a Wolfe Ridge Firewood Conveyor!  We offer conveyors in four sizes from 16 foot long all the way up to 40 foot long!  Our conveyors are cut, fabricated, and welded in house at our factory in Eau Claire, Wisconsin, USA.  Our FC machines have a self contained hydraulic system with a Honda engine for reliable performance day in and day out.

  • Powerful Honda engine for consistent performance
  • Easy-to-use controls
  • Sandblasted and powder coated for a tough, long lasting appearance
    • Red, Orange, Gray, or Blue as standard color options
    • Custom colors with any RAL color code for added fee
  • 1 year warranty on machine – 3 year on engine

Tech Specs

  • Honda GX200 gas engine with recoil pull start
  • Self contained hydraulic system with reservoir and return filter
  • Top pull hydraulic drive
  • Hydraulic forward AND reverse
  • Speed control for conveyor chain
  • Hydraulic height adjustment
  • Heavy duty welded paddles
  • 81X conveyor chain
  • Wheels rotate 90 degrees for easy slew / angle adjustment of conveyor
  • Grizzly bars & chip chute INCLUDED!
  • Max loading / exit height *WITH GRIZZLY BARS REMOVED*
    • FC-16 = 8 foot max exit height
    • FC-24 = 12 foot max exit height
    • FC-32 = 15 foot max exit height
    • FC-40 = 19 foot max exit height

If you already have a commercial log splitter or a processor, a firewood conveyor from Wolfe Ridge can take your operation to the next level!  Invest in a high-quality, made in USA, firewood conveyor that you can rely on day in and day out.
