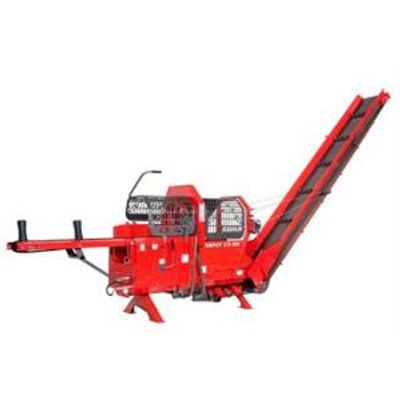

Krpan - Model CS 420 - Firewood Processors
Splitting Force 16 t. Necessary Tractor Capacity 30 kW / 41 HP. Tandem cast iron pump - hydraulics group 3. Valve with two automatic splitting speed levels. Control lever for manual switch (ON-OFF) of splitting. Control lever for automatic cycle. Conveyor swinging mechanism for left-right movement, Splitting wedge 4-way. 5 m telescopic conveyor. Oil cooler. Large oil tank with 100 l capacity. Velocity setting, P.T.O. Shaft Walterscheid WWZ 2480-SDF25-860.
Most popular related searches
- Cut Log Length 25-50 cm
- Cut Log Diameter 6-42 cm
- Sawbar OREGON 18", b=1,5
- Chain 3/8 OREGON Multicut
- Splitting Force 16 t
- Control Mehanical
- Oil Quantity in Tank 100 l
- Necessary Tractor Capacity 30 kW / 41 HP
- Discharge Conveyor - swinging (5 m) S (mechanical swinging)
- Discharge Speed - with Continous Speed Control 0-1 m/s
- Weight with Discharge Conveyor 1170 kg
- W x L x H - working position 6915 x 1305 x 3825 mm
- W x L x H - transport position 2270 x 1305 x 2675 mm
- Wide angle PTO Drive Shaft Walterscheid WWZ 2480 Standard
- Splitting Wedge 4-Way Standard
- Splitting Wedge 6; 6/4; 8; 12-Way Optional
- Wheels for easier transport Optional
- Radio Remote Ctrl. for Log Loader or Live Deck Optional
- Sawdust Extractor Fan (hydraulic or electric) Optional
