Fish Feed Hammer Mill
During the fish feed production process, fish feed crusher is a hammer grinding machine used for processing fish feed raw materials into small pieces with proper sizes to help further process. And we are the expert in designing and manufacturing several fish feed crushing machines for your choice.
1 .Wide application: this fish feed grinder is working well for various users to process agricultural materials, such as branches, bark, corn stalk, peanut shell, dry grass, cotton stalk, etc.; and pharmaceutical and industrial materials, such as Chinese medicine crops, quartz, coal, coal residue, woods, etc.
2.Simple structure, high efficiency, easy operation, reliable performance and easy maintenance.

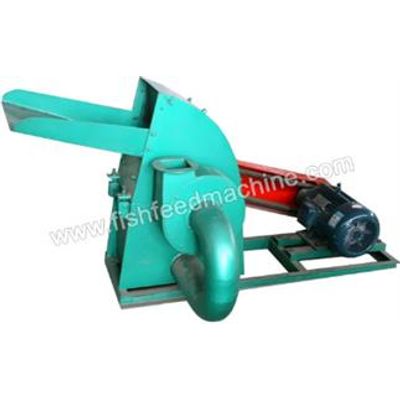

This fish feed grinding machine is made up of feed hopper, top engine block, bottom engine block, rotor, sieve, working fan, feed delivery pipe, etc. And the storage bag and storage bin can be equipped as customers required. Besides, Amisy also provides other two similar machines to grind feed ingredients - Fine Grinding Hammer Mill and Coarse Grinding Hammer mill.
1. The raw material enters into crushing chamber through feed hopper, and it is broken by hammer hit with high-seed rotation.
2.Under the drive of airflow, the broken material is moving along the rotor outer-edge and has a continuous collision and friction against the hammer, toothed plate and sieve, and then the broken material is crushed.
3.The particle after crushing is delivered into storage bags or bins through sieve under the centrifugal pressure of rotor and the suction force of working fan.
