SciElex - Fish Measuring Board

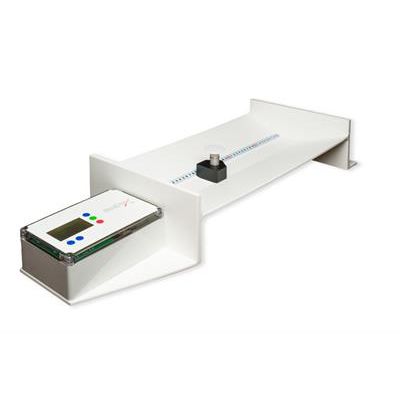

Finfish Measuring Board with Bluetooth connection to almost any device. The Scielex Measuring Board is designed to assist with the measurement of fish. The Measuring Board provides a fast and efficient method for transferring fish length, together with other information to almost any digital device. An industrial linear position sensor is used to provide a highly linear and repeatable length measurement and data is transferred automatically via RS232 cable or Bluetooth when a sample is taken.
The Board is powered by a NiMh battery providing approximately 40 hours of continuous use.
The Bluetooth connection may be made with almost any device that can connect to a Bluetooth keyboard. This includes, PC, Mac, iPhone, iPad, and Android devices. The Measuring Board appears as a Bluetooth Keyboard and data is sent as key presses.
Up to 5 fields of additional data may be transferred with each length sample.
Standard length ranges are 400mm and 900mm although other lengths are possible if required. Sealed to IP66.
