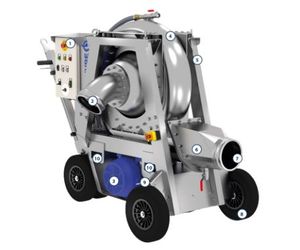

Faivre - Model 40 (8 Inch) - Fish Pump Pescamotion for Sorting

High performances

• Optimised by powerful digital simulation tools, the Pescamotion 40’s performance matches its exceptional design.
• Available in 11kw power, it can transfert your fishes on 1000 meters lenght.
• Its 15 m of TDH (total dynamic head) as 4m max. suction height & 11m discharge enable the pump to adap to a lot of situations.

Ultra-fast priming

• We designed this fih pump to be easy, fast and efficient to start.
• That’s why we equipped the Pescamotion 40 with a real liquid ring vacuum pump to fill the hose and the pump housing very quickly.
• This stainless steel priming pump is very resistant.
• Electrical box
• The control box is easily accessible on the side of the pump.
• It is very easy to use, but enables you to take full control of the pump. Only 2 on/off buttons and a potentiometer for rotor speed variation are needed to operate the Pescamotion 40 fish pump.

Handy

• Designed to be easily handled by hand or by machines, the Pescamotion 40 can be :
• Pulled or pushed by hand thanks to the drawbar and its 2 handles.
• Towed by a tractor with the integrated loop at the draw bar extremity.
• Lifted or handled safely by a forklift truck thanks to its two fork positions.
• Lifted and handled with a crane thanks to its 4 lifting rings.

• The fish pump is supplied as standard with a suction cone.
• Semi-transparent, flexible hoses are available as an option in 5 or 10 m lengths:
• Ø 6″ (Ø 150 mm) hoses with male and female camlock assembled at each hose extremity.
• Ref. : PP0603FM length. 5 m
• Ref. : PP0604FM length. 10 m
• Ø 8″ (Ø 200 mm) hoses with male and female camlock assembled at each hose extremity.
• Ref. : PP0803FM length. 5 m
• Ref. : PP0804FM length. 10 m

Reduction 8” – 6”

• A 6″ reduction on the fish pump inlet and outlet helps you adapt to any working situation.
• Ref. : PH061111

Dewatering

• The water separator hopper is an important element for the proper functioning of a fish pump. To be effective, the water separator hopper must have a particularly studied design.
• Light and handy with its 2 inflatable wheels, it is made of marine aluminium. It has a grid with a gap of 5mm and can evacuate up to 1000m3/h of water.
• The “Dewat 40” adapted to the Pescamotion 40.
• Ref. : TD0802

Remote control

• As an option, a compact, waterproof remote control is available.
• With a working distance of 200 m outdoors, it permits a complete control of the pump.
• Ref : PH00REM2
