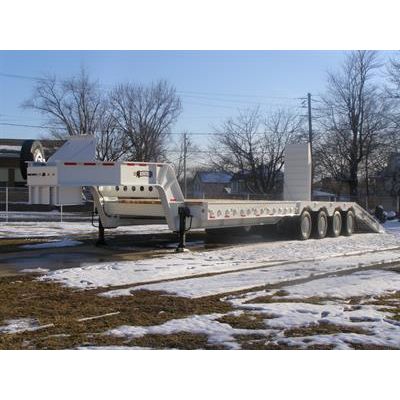

Rogers - Model 121-Ton FG121L103-8X - Fixed Gooseneck Trailer
This fixed gooseneck trailer was built for use in a copper mine in South America. The hydraulic-powered rear ramps, covered with 1/2" steel plate and traction bars, combine with hydraulic-powered support legs to offer improved traction for loading over the beavertail. The trailer was manufactured for use in a South American copper mine.
Most popular related searches
- Trailer Use Rear Loading: Fixed Gooseneck
- Tons 121
- Capacity 121.0-ton (109.8-tonnes)
- Deck Style Platform
- Deck Length 19`-8" (6.0-meter)
- Deck Height LD 0" (0.0-meter)
- Deck Width 13`-0" (4.0-meter)
- Load Con Weight 242,508-pounds (110,000 kilograms)
- Load Con Length 20`-0" (6.1-meter)
- Axles 8 axles
- Suspension 132,277 lb capacity trunnion style suspensions
- Axle Type 33,069 lb capacity axles with grease-filled bearings
- Tires 315/80R22.5(L) low-profile tubeless radial
- Wheels 22.5 x 9.00 10-hole steel disc
- Brakes 16 1/2" x 7" shoes (no ABS)
- English Dimensions File
- Metric Dimensions File
- Standard Feature Bullets
- Optional Equipment Bullets
- Optional Equipment Link No Standard Optional Equipment Available
