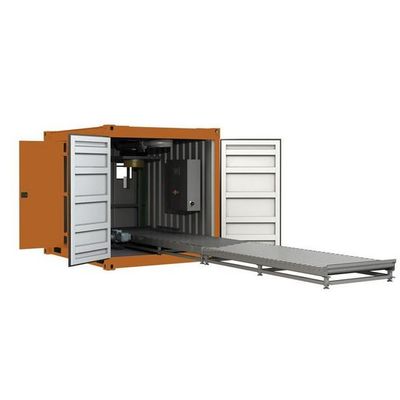

Impac - Model XL 60 - Fixed Single Line Mobile Bagging Unit
The unique design of the Impac XL range allows compatibility with a variety of applications. Typical uses are to provide bagging facilities for an existing plant, port warehouses, inland locations, dockside storage depots. It is designed to bag 1000 kg bags at a rate of 1 bag per minute. with a minimal personnel. The speed of course depends of the products characteristics and the working environment. It is ideal for free flowing granular product up to a particle size of 25 mm.It is ideally suited to handle cereals, fertilizers, sugar, pulses and beans...
- Specially designed and constructed single-line bagging unit housed in a standard size ISO 10 ft steel container
- Single working line
- Roller-track motorised bag conveyor with rubberised rollers to prevent bag slippage
- 1-2 operators per line are recommended
- Power supply 400 VAC/50 Hz 3 phase as standard for EU, possibility to adapt equipment for local requirements
- Power consumption 6kW
- 60 mt/ hour for 1000 kg bags
- High pressure fan for blowing up the big bag before filling
- Bag specifications, 1000mm L x 1000mm W x 750-1300mm H with filling spout 500mm diameter and 400mm height
- 20 kVA generator
- Air compressor, including 250L air tank and air dryer system
- Hopper
- Wheel set, castor light duty
- Longer roller conveyor
Impac XL60 is a free standing one line big bag installation designed to handle up to 60 metric tons* of cargo per hour, basis 1000kg bags.
Product suitability: free flowing, non-bridging granular products with a minimum density of0.7ton per cubiceter and a maximum size of 25mm.
(*Speed depends on product flow, operators and take away)
General Specification
Each line consisting of:
- Stainless Steel Dosing valves
- Stainless Stell Filling Spout Big bags, with anflatable joint
- Electrical box, with 1 minimate with Big bag program and pneumatic valveblock for controlling all functions
- Blower for blowing up the big bag with air, regulated by pneumatic cyclinder
- Mild Steel Motorized Roller table, positioned on three loadcells for weighing the Big bag
- Mild Steel Motorized Roller table for transporting the Big bag out of the container, appr. Length 2.5m
