Gildan - Model V9.6 -Fixed Vent with Curtain Greenhouses
This model offers a solution to ventilation and humidity problems and is resistant for both cold and hot climates. The V9.6 is designed to provide maximum growth area and superb natural light distribution together with fixed openings, located in the center of the arches, allowing better ventilation and removal of condensation. The roof ventilation provides 12% of the total ventilation of the covered area. The roof vent can be naturally ventilated and closed by insect net or ventilated by roll-up curtain. V9.6 greenhouses are suitable for all types of vegetables and flowers, including varieties that require the hanging trellis technique.
Most popular related searches
insect netting
poly greenhouse
irrigation system
greenhouse curtain
irrigation system controller
flower variety
greenhouse model
irrigation control system
irrigation
irrigation control
- The angle of the roof gives better light transmission.
- Side wall openings can be covered with insect-proof net and roll-up curtains.
- Cladding: either single or double polyethylene film.
- The design accommodates a variety of equipment and accessories (thermal screens, fans, air circulators, irrigation systems, heating systems, control systems, substrate media, automatically operated curtain…..).
- The frame is fabricated from galvanized steel. Gildan use galvanized tubes and an open profile to ensure longevity and sustained structural integrity. These unique tubes and open profiles are used to manufacture the major components of the structure frame & foundation.
- The structure design complies with the Israeli Steel Structure standard and Structural Loads standards.
- The structure is assembled using only nuts and bolts, requiring no welding work in the field.

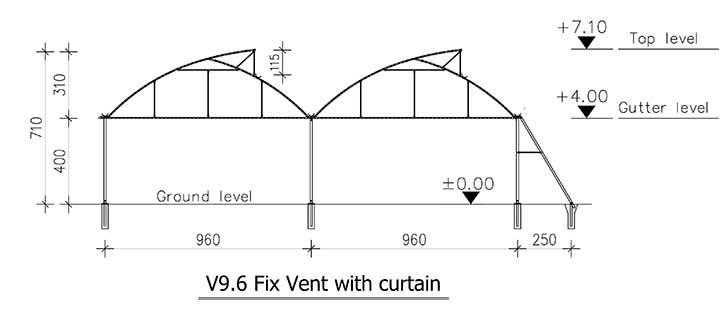

- Span: Multiples of 8m or 9.6 m
- Height under gutter: Up to 4.5 m depending on the model
- Distance between arches: Multiples of 2m or 4m
- Arch diameter: Ø2"
- Posts: Profile 100x50 mm
- Opening of roof vent: 1.2 m
- Withstands wind speeds of: 120 - 150 km/h
- Withstands trellising load up to: 25 kg/m²
