Maschinenfabrik Bermatingen GmbH & Co. KG

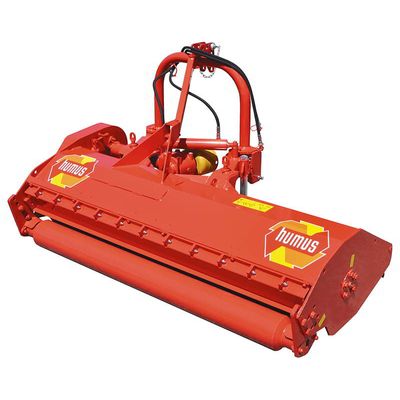

Humus - Model KM - Flail Mulcher
The KM flail mulcher is designed for universal use. The extremely flat design and the lowered drive are ideal for the use in fruit growing. The serial 3-point parallelogram sideshift adjustment with large setting range allows lateral extension at the tractor. A powerful model for mulching and shredding prunings. As the KM is mounted closely to the tractor, the weight distribution is advantageous and guarantees a good manoeuvrability. The mulched material is spread out evenly behind the rear roller.
Most popular related searches
flail mulcher
mulcher
landscape maintenance
mulching machine
fruit growing
mulching
mulch
tractor
pruning
mulcher attachment
- In orchards and vineyards
- In horticulture
- In berry plantations
- In nurseries
- In sports facilities and parkways
- Fallows
- In landscape maintenance
- To shred prunings
- In municipal use
- Mulching of corn stover
- Mounting: front and/or rear
- Three-point frame rigid attachment
- Gearbox with free wheel
- High-quality bevel gear: Robust, flexible drive over enhanced V-belt on the rotor shaft
- Rear roller adjustment for good soil management and precise cutting height
- Self-cleaning roller with large storage and floor-friendly guide to the rounded ends and vertical adjustment the mulch machine – at WM 135 and 145
- Drive roller diameter: 140 mm
- Rotor tube diameter: 102 mm
- Serrated counter-cutter in the housing to increase the degree of defibration and reduction of the mulch mass
- Drive-side housing height with rear attachment, flat drive 602 mm; with 3-point attachment drive 743 mm high
- Housing height on the discharge side 487 mm
- PTO (part no. 800.11.004)
- PTO with free wheel (part no. 800.11.005)
- Set of skids (part no. 521.95.923)
- Hydraulic side adjustment for mulcher /
- 42 cm adjustment track (part no. 224.90.402)
- ( )* KM 180 / 200 / 220 suspension and central gear
- Rubber shred rotor / inter-row cutter with holder for
- mulcher, rear attachment (part no. 101.10.004)
- Swivel disc with motor, Outreach from side plate of the mulcher 53 cm, working width 68 cm, 75 kg without hydraulic hoses (part no. 224.95.615)
- Wear plates
