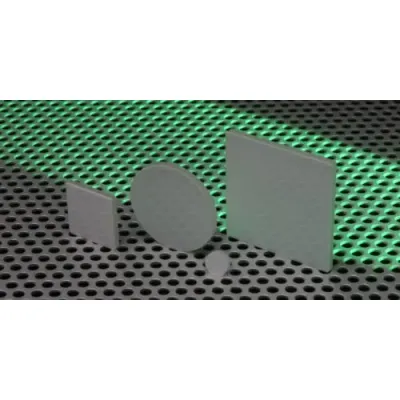

UQG Optics - Flashed Opal Diffuser Windows and Plates
Flashed opal diffusers from UQG Optics feature one surface coated with a white opal layer. These diffusers are capable of creating near Lambertian light sources, which uniformly scatter light with a high level of diffusion. The layer thickness may vary from batch to batch due to the manufacturing process. This type of material has been discontinued by its original manufacturer; however, UQG Optics still maintains significant stock. These diffusers are suited for applications requiring intense light diffusion and are available in various diameters and square dimensions, with options for custom designs. UQG Optics also offers alternative materials that provide similar optical properties for lighting purposes. Customers can inquire about custom orders by contacting the sales team for tailored solutions, including volume and OEM discounts.
White flashed opal diffusers have one surface flashed with a white opal layer. It can produce near Lambertian source, diffusing light thoroughly with a high amount of scattering, ideal when intense diffusing is required. Layer thickness can change from batch to batch due to the manufacturing process.
Please note the Flashed Opal Glass material has been discontinued by the manufacturer and is available in limited sizes but UQG still hold significant amounts in stock. An alternative material is manufactured to give the same apperence for lighting applications.
UQG optics white flashed opal diffuser window and plates are made as diameters and squares to a standard stock range or custom made to your design.
- Material: Flashed White Opal
- Dimension Tolerance: +0.00 / -0.20mm
- Thickness Tolerance: ±0.30mm
- Edge Finish: Fine ground
- Diffused Surface: Opal layer
- Second Surface: 80/50 Scratch/Dig
- Flashed Opal Layer Thickness: 0.45mm (+0.35mm /-0.20mm)
