Novatech - Flat Loader

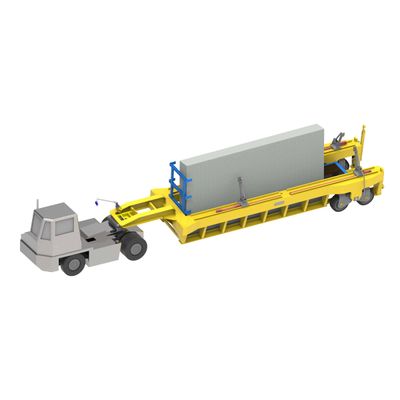

The Flat Loader is a cost-efficient solution to handle and transport concrete elements on flats between the production line, storage area and goods out. It is designed from the customers demand to be durable in industrial environments and requires minimum maintenance compared to the road trailers. The Flat Loader can be operated by one operator and a terminal tractor.
Explore the full range of capabilities of the Flat Loader, designed specifically for the precast concrete industry. From seamless functionality to excellent maneuverability in uneven terrain, the Flat Loader stands out as a versatile and reliable choice. Watch now to see how it redefines the standards in concrete transport!
Time is money. Discover the speed and convenience of the Flat Loader, the ultimate solution for transporting concrete elements. With advanced controls directly from the cabin, there’s no need to exit your seat to manage lifting, lowering, or securing loads. This not only enhances safety but also significantly boosts efficiency. Watch how the Flat Loader outperforms traditional machines with its unmatched speed and ease of use.
Transporting Materials in Reverse Position
Did you know the Flat Loader can transport materials in a reverse position? Watch as it handles a pallet with a rear-centered load effortlessly, thanks to its specialized design. Achieve stability and safety even in challenging conditions. The Flat Loader proves why it’s the leader in transport solutions for the precast concrete industry.
- Operated by tractor and one operator
- Remote to release & part a pallet from tractor cabin.
- Hydraulic safety beam
- Rear view camera
- Monitor with camera view (optional)
- LED rear and brake light combined with turning signals
- LED working lights
- Reversing alarm
- Emergency lowering
- Parked on Hardox slide
- Load: 34.000 kg
- Weight: 12.000 kg
- Driving speed (loaded/empty): 10/25 km/h
- Max tug master angle: 60°
- Lifting height: 345 mm
- Super elastic tires: RES660xt 355/65-15
- Wheel capacity: 7800 kg
- Operation hydraulic pressure: 210 bar
- Max hydraulic flow: 120 l/min
- Operation voltage: 24V
