RainCatcher - Model Lilo - Flat Tank Below Ground Garden System
This rainwater package provides all the mandatory components for a rainwater harvesting garden system. The RainCatcher Lilo Flat Tanks are one-piece, saving time and money on installation. They are also suitable for high water tables up to the tank shoulder.
The RainCatcher Flat Tank Rainwater Harvesting Garden System can incorporate a 1500, 3000 or 5000 litre Lilo Flat Tank. It also includes the following components:
- Internal Garden Basket Filter
- Automatic Submersible Pump with Dry Run Protection
- 25m x 25mm Black & Green WRAS Approved MDPE Rainwater Pipe
- RainCatcher Rainwater Labelling Kit
- Rondo Water Pillar Connection & Tap
The RainCatcher Lilo is fully ECA approved on the Water Technologies List.
It includes a pedestrian lid, although trafficked options are available if necessary.
Available in 1500, 3000 or 5000 litre capacities.

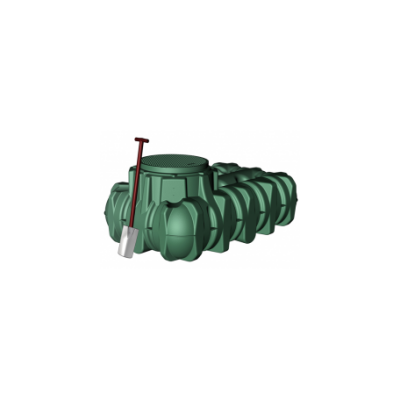

The Lilo Rainwater Flat Tank was specially developed for rainwater harvesting. It features a minimum installation depth which results in a short installation time and low costs as no concrete backfill is required.
Dimensions for each Lilo Flat Tank are:
- 1500 Litre – 2100mm (L) x 1250mm (W) x 1015mm (H)
- 3000 Litre – 2450mm (L) x 2100mm (W) x 1045mm (H)
- 5000 Litre – 2890mm (L) x 2300mm (W) x 1265mm (H)

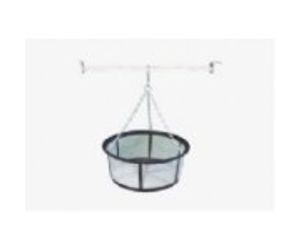

Internal Garden Basket Filter
Ideal for below ground systems where only gardening applications will be utilised. The Basket Filter sits comfortably within the tank and catches unwanted debris and leaves.

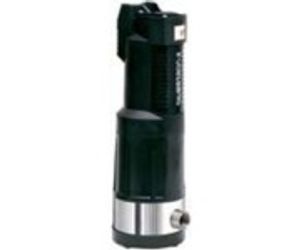

Divertron X1000 Submersible Pump with Floating Extraction Unit
The Divertron X1000 is a unique submersible pressure pump that is programmed to start and stop automatically when a valve or tap is opened or closed. Another programme will stop the pump automatically in the event of dry running, thus protecting it from severe damage.

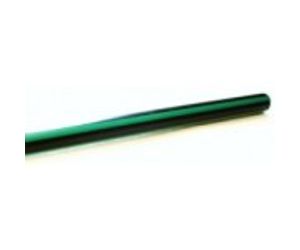

WRAS Approved Black & Green MDPE Rainwater Pipe
It is essential that all pipework for below and above ground rainwater harvesting systems can be easily recognised wherever it is located to avoid cross-connection and contamination of the potable water supply systems. The marking requirements are a black pipe with green stripes at four quadrants.
