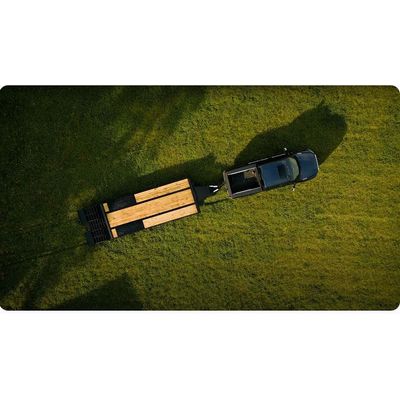

Moritz - Model FDPH DT Series -Flatbed Pintle Trailers with Dovetail
Our large tongue design is one feature that stands out from our competitors. This model also comes standard with a 5’ tail and heavy duty steel dozer ramps.
Most popular related searches
- Standard Dozer Ramps (Heavy Duty Steel Ramps)
- Optional Aluminum Wedge Ramps with adjustable spring tension
- extra large steel diamond plate Toolbox
- Integrated Steps on both sides of the trailer allow for easy access to the deck
- new Optional smooth Underbody Toolbox
- extra large steel diamond plate toolbox
- Standard Dozer Ramps (Heavy Duty Steel Ramps)
- Optional Aluminum Wedge Ramps with adjustable spring tension
- Approximate Deck Height: 34"
- Overall Width: 102"
- Chassis: Torque Chassis (torque resistant cross tubes) and Cambered Main Beams
- Brakes: Electric (All Wheels)
- Suspension: 7K & 8K Torsion / 10k & 12K Spring
- Stake Pockets: 3" x 1/4"
- Stake Pockets Inside Dimensions: 4.125" x 1.875"
- Tires: ST235/80 R16 LRE
- Wheels: 16" (8-Bolt)
- Jacks: Dual 15000lb Spring-Loaded Foot
- Pintle Hitch: 21Ton
- Cross-Members: 16" center
- Side Rails: 6" @ 8.2lb/ft channel
- Safety Chains: 3/8" w/ Latch Hook
- Lights & Wiring: LED Lights & Sealed Wire Harness w/ Moisture-Resistant Connectors
- Floor: 2" Treated Yellow Pine
- Ramps: Heavy Duty Steel w/ Adjustable Spring Tension
- Dovetail: 5` Self Cleaning
- Breakaway Kit: w/ Charger
- Steps: Deck Access
- Tool Box: Extra Large Steel Diamond Plate Toolbox w/ Light Inside and Chain Rack
