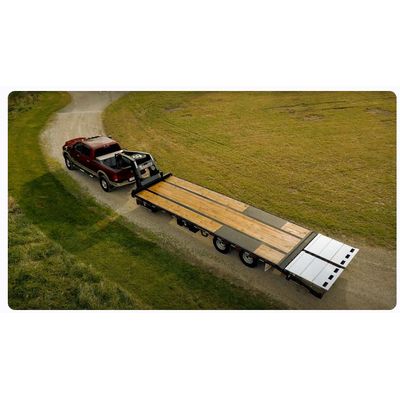

Moritz - Model FDH DT Series -Flatbed Trailers with Dovetail
Our gooseneck design is one of the features that stands out from our competitors. It puts steel where it is needed and is modern looking in design. This model also comes standard with a 5’ tail and aluminum wedge ramps.
Most popular related searches
Redefined Signature Gooseneck
Larger, stronger and more stylish. Our redesigned gooseneck combines enhanced durability with the same great Moritz signature look.
ULTIMATE RAMP
Experience easier loading with our lightweight aluminum wedge ramps. Built to last, these ramps are incredibly rigid and strong. Optimize the ramp spring tension with adjustable spring technology
- Approximate Deck Height: 34"
- Overall Width: 102"
- Chassis: Torque Chassis (torque resistant cross tubes) and Cambered Main Beams
- Brakes: Electric (All Wheels)
- Suspension: 7K & 8K Torsion / 10k & 12K Spring
- Stake Pockets: 3" x 1/4"
- Stake Pockets Inside Dimensions: 4.125" x 1.875"
- Tires: ST235/80 R16 LRE
- Wheels: 16" (8-Bolt)
- Jacks: Dual 15000lb Spring-Loaded Foot
- Coupler: 2 5/16”
- Cross-Members: 16" center
- Side Rails: 6" @ 8.2lb/ft channel
- Safety Chains: 3/8" w/ Latch Hook
- Lights & Wiring: LED Lights & Sealed Wire Harness w/ Moisture-Resistant Connectors
- Floor: 2" Treated Yellow Pine
- Ramps: Aluminum Wedge Ramps w/ Adjustable Spring Tension
- Dovetail: 5` Self Cleaning
- Breakaway Kit: w/ Charger
- Steps: Deck Access
- Tool Box: Extra Large Steel Diamond Plate Toolbox w/ Light Inside and Chain Rack
- Super Single 22900 & 25900 GVWR
- Optional Dozer Ramps with adjustable spring tension
- Easy Access Deck Step
- new Optional smooth Underbody Toolbox
- Large Stake Pockets to Accommodate Chain Binders
- Standard Winch Mount With Optional work lights, Winch, & Spare Tire
- Large Stake Pocket to Accommodate 4IN Straps
- Large Gooseneck Toolbox with Light Inside and Chain Rack
- Standard Aluminum Wedge Ramps with adjustable spring tension
