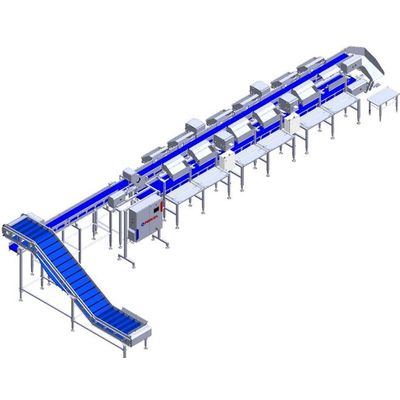

Peruza - Flow Weight Grader

• Continuous grading process
• Precise and fast weighing
• Adjustable speed
• Requires only 1 operator at each gate

• The Flow Weight Grader has been designed for continuous and fast fish dosing in boxes.
• It makes precise weighing of the fish and places them into relevant boxes.
• PERUZA Flow Weight Grader can be enabled for grading fish in boxes by specific size, also considering their weight.
• Product for grading is filled by operator on infeed Z-type conveyor – one product per pocket.
• It is transported and transferred to acceleration conveyor.
• Each product is weighed separately in flow weight conveyor unit.
• The weight is compared to correct exit gate grade and transported along the main conveyor to corresponding exit gate.
• When boxes at several station have reached close to needed weight, the product will be transferred to exit gate that has lowest possible up-weight compared to other gates.

Technical characteristics:

• Product: Whole-round fish
• Processing capacity: 60-120 fish per minute
• Equipment dimension (LxWxH): 13800 x 2340 x 2230 (mm)
• Number of operators on the machine: 0-1
• Key features: Adaptable, effectiveness, repeatability
