PermAlert, a division of Perma-Pipe, Inc.
FluidWatch - Model FWII - II Series -Agriculture Water Leak Detection Systems

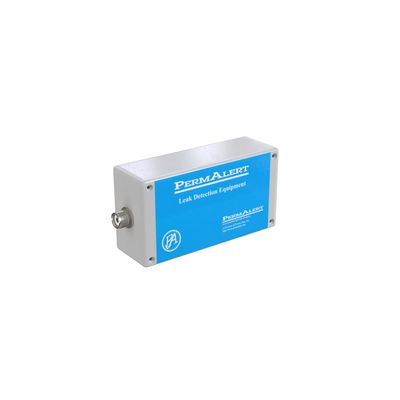

FluidWatch II Leak Detection System is the compact version of the FluidWatch system for monitoring space with difficult access and limited space to mount a regular panel.
Most popular related searches
The FluidWatch II leak detection system is designed to monitor small areas for water leaks. Its small form factor and ease of installation is an ideal leak detection system for remote monitoring of small room or areas. The system continuously monitors the capacitance of the sensor cable and detects changes from the initial value. The system can operate as standalone leak detection system or integrate with third party systems via the dry contact.
- 24/7 Continuous Monitoring
- Cable Sensor System
- Fast Respond Time
- Relay Output Capable
- Compact Design
- Fast response time with sensing water-based liquids in seconds
- Adjustable sensitivity from several inches to several feet
- Ruggedized sensing cable and not susceptible to dust /dirt contamination
- Custom sensing cable lengths available upon request
- LED indicators for power, leak and fault conditions with built-in audible alarm
- Compatible with 10-30 VAC DC
- Light weight and ease of installation
Physical & Mountings
- Dimensions: 3.15” x 5.91” x 1.82” / (80mm x 150mm x 46mm)
- Weight: 1.0 lb. / (0.45 kg)
- Mounting: Wall mount through holes on back of panel or mount with adhesive tape
Environmental & Performance
- Operating Temperature: 0°F to 122°F / (-18°C to 50°C)
- Maximum Humidity: 95% RH at 122°F / (50°C)
- Ingress Protection: IP10
Electrical & Communications
- Supply Voltage: 10-30V, AC/DC, 6VA / 6W
- Relay Type: SPDT Relays, 10A / 250 VAC
- Number of Relays: 3 x SPDT Relays
