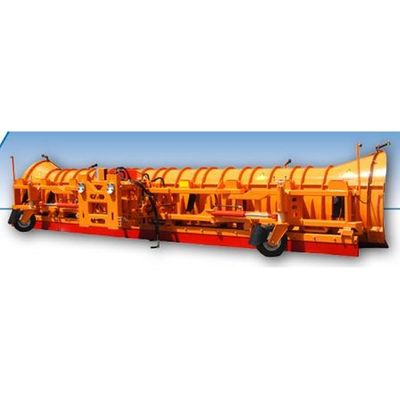

Kahlbacher - Model Airport - VAMPIR KL -Foldable Snow Plough

Mature concept

• Multi-blade design for an optimum adaption to the road surface
• Hydraulically foldable outer blades reduce the passage width
• Flow-optimized design with raised outer blades for high clearing capacity
• Snow plough kinematics with tension-free swivelling and lifting/ lowering
• Robust, enclosed ladder frame construction with unique reliability and matchless low maintenance costs
• For mounting on tractors, equipment carriers and trucks

Kahlbacher elastic override system

• The override system featuring PU-lower links and torsion-free steel swing arms allows an immediate response to obstacles and guarantees a high lateral stability
• The elastic override protection and the maintenance-free retaining rubbers ensure the smoothness of running and low noise level
• Ablade angle of 0° or 45° ensures an efficient, thorough and a low-wear road clearance

• Electronic control system for lifting/ lowering, swivelling, automatic folding and unfolding of the blades, synchronization with runway sweeper
• Simple and convenient operation via joystick
• The hydraulic control block is installed o the plough - the vehicle requires only one hydraulic circuit
• Hydraulic snow plough relief
