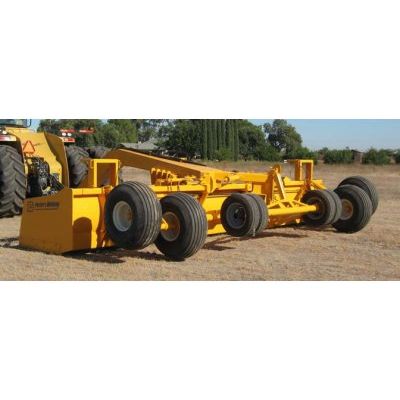

Porters - Folding Laser Drag Scraper

FromPorter`s Welding

SHARE

Save time with the new Porter’s Folding Laser Drag Scraper. Same great features as the Laser Drag Scraper, but now with an easier and faster option than the transport wheels. This scraper is equipped with a hydraulic swing bucket and a modified tongue, so the scrapers does not have to be detached from the tractor. It takes approximately one minute to be converted from field to transport mode.

Most popular related searches

Model # FLDS24

Yard Capacity: 16.3

Overall Dimensions

Length‐Working: 336"
Length‐Transport: 384"
Width: 288"
Height w/ tower: 62"
Cutting Edge: 286.5"
Approximate Weight: 13340
Axle Weight: 10760

Endplate

Thickness: 3/4" Plate
Height: 44"
Mole Board Thickness: 3/8" Plate
Cutting Edge: 3/4" x 8"
Replaceable Slobber Bits: Standard

Wheels & Tires‐ Field

Tire Size: 16.5‐16.1/10
Wheels: 16.1x14, 8on8
Number of Tires: 4

Wheels & Tires‐Transport

Tire Size: 22.5‐16/7.5
Wheels: 16.1 x 14, 8 on 8
Number of Tires: 4

Horsepower Requirements

Minimum: 280
Maximum: 400

Hydraulic Requirements

Minimum: 20gpm
Number of Laser Towers: 2
