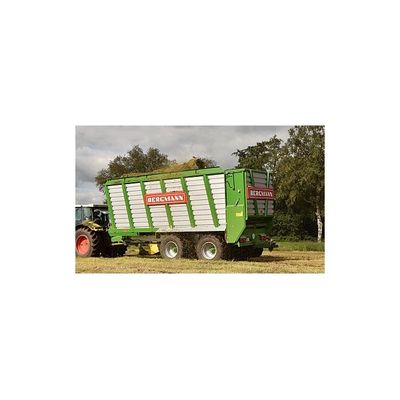

Bergmann - Model HTW 40 / 40 S -Forage Transport Trailer

• Vehicle dimensions
• Length: 8,980 mm
• Width: 2,550 mm
• Height    3,860 mm
• Volume capacity (DIN): 39 m³
• Volume capacity with sidewall extensions: 42,1 m³
• Max. gross weight (high drawbar): 20,000 / 22,000 kg
• Max. gross weight (low drawbar): 22,000 / 24,000 kg
• Axial distance: 1,600/ 1,900 mm
• Tack width: 2,100 mm
• Power demand
• KW: 96 - 221
• h.p.: 130 - 300

Measures, weigths and technical data subject to change without notice. All illustrations, dimensions and weigths do not necessarily correspond to the series model and are non-binding.
