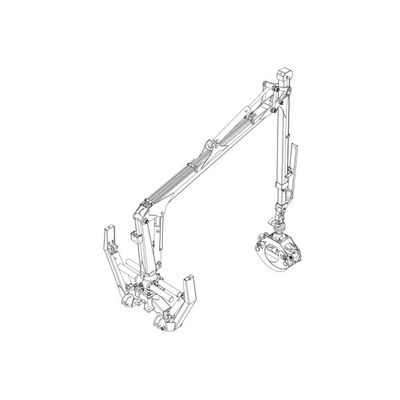

PALMS - Model 2.54 -Forest Crane

Max outreach, m : 5,4. Brutto lifting torque 190 bar, kNm : 26. Brutto lifting torque 215 Bar, kNm : 29. Lifting capacity at 4m, 190 Bar, w/o grapple and rotator, kg : 530. Lifting capacity at full reach, 190 Bar, w/o grapple and rotator, kg : 370. Lifting capacity at 4m, 215 Bar, w/o grapple and rotator, kg : -. Lifting capacity at full reach, 215 Bar, w/o grapple and rotator, kg : -. Telescopic boom stroke length, m : 1,33. Slewing cylinder amount in slewing housing, pcs : 4. 2/8 Pre-hydraulic,+2x el.propo, Parker P70, 190bar : . Slewing torque, kNm : 7,8. 2/8 Pre-hydraulic +2x el.propo, LS-comp, 190bar : . Working pressure, bar : 190. Rotator maximum load, kN : 30. Crane weight without support leg and valve block, kg : 400. Pillar slewing angle, degrees : 370. Recommended oil flow, L/min : 20-35. Propo el, display+ministick, Parker L90, LS-comp. : 0.00.
