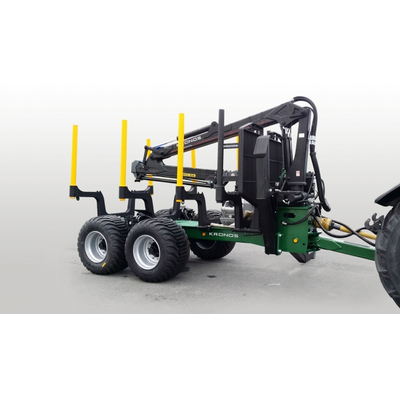

Kronos - Model 150 -Forest Trailer
The Kronos 150 is a trailer with a large load capacity. It is suitable for those who need to be able to mount a large loader but at the same time want a trailer that is easy to pull on the road. The trailer is also available with hub motors and a maximum driving force of 51kN.
Most popular related searches
- Weight, kg 4500-4900 4100-4500
- Carrying capacity, kg 15000 15000
- Total weight permitted on bogie with max speed 30 km/h, kg - -
- Cross-section area of load platform, m² 3,2 3,2
- Overall length, mm 6100 6100
- Length of the load area, mm 3800-4000 3800-4000
- Bolsters: Fixed / Movable 1 / 3 4
- Load supports 9 8
- Bogie wheelbase, mm 1220 1220
- Bogie movement range, degrees 20 20
- Push force of trailer, kN (kp) hydr.driven*185 bar 16 -
- Ground clearance, at bogie, mm ~ 640 ~ 640
- Ground clearance at rear of frame, mm ~ 700 ~ 700
- 400/60-15.5/14 - -
- 500/55-17/12 ELS - -
- 550/45-22.5/12 ELS - -
- 600/50-22.5/12 ELS L-1 TL - -
- 600/50-22.5/16 ELS L-2 SF (with steel breaker) o o
- 600/50-22.5/16 TRS 6-2 SF (with steel breaker) - -
- 710/45x22.5 Nokian Forest King (with steel breaker) - -
- 700/50-26.5/16 TRS SFS (with steel breaker) - -
- 600/55-26.5/16 TRS L-2 SF (with steel breaker)
- Front grill s s
- Hydr. adjustable front grill and bolster o o
- Multiple disc brakes - -
- Operating brake (hydr.drum brakes) s s
- Parking brake o o
- Differential locking system - -
- Mechanical clutch and lock electric operated from the control unit - -
- Turning angle of the hydraulic drawbar, degrees ±33 ±33
- Y-drawbar with frame steering - -
- Telescopic rear frame-extension with one bolster o o
