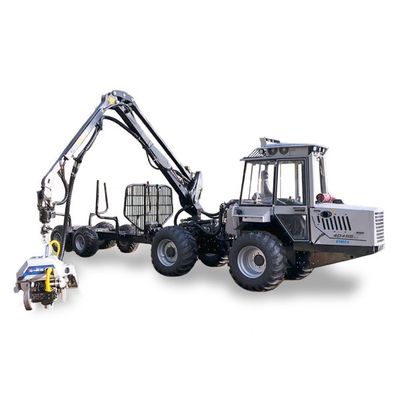

VimekModel 404 DUO -Forestry Harvester and Forwarder

SHARE

Vimek 404 DUO unites the best of both worlds. It combines a harvester and a forwarder in one machine. Efficiency in small-scale forestry is important. The need for smart solutions and the possibility of combining different machines have high demand today. We have taken this into account in the development of Vimek 404 DUO.

Most popular related searches
  • Motor : CAT C2.2T CRDI 50 kW
  • Transmission : Hydrostatic / mechanical
  • Ground clearence : 40 cm

Dimensions :

  • Axle width : 2,10 m
  • Lenght : 4,65 m (loading area 3,40 m, cargo space 2,0 m²)
  • 9,25 m incl. trailer
  • Width : 1,80 m or2,05 m
  • Weight : 4.700 kg, trailer excluded

Crane :

  • Model : Vimek - Mowi P25
  • Max. reach : 5,20 m
  • Lifting capacity : 400 kg at 5,2 m
  • Gripping area : 0,16 m²

Harvesting unit :

  • Model : Keto Forest Supreme V3
  • Keto Forst Xtreme (option)
  • Max. diameter : 300 mm
  • Weight : 269 kg
  • 300 kg (Xtreme)
  • Saw engine : 10 cc
  • Bucking system :
  • Models : DASA H50/H70

Accessories :

  • Clamshell bucket :
  • Weight : 130 kg
  • Max. opening : 1300 mm
  • Speed : 50 mm
  • Volume : 125 liter

Vimek C12 - Thinning head :

  • Weight : 160 kg
  • Diameter : 795 mm
  • Rotation speed : 1100 rpm
