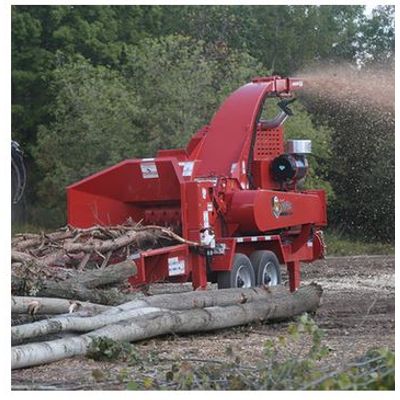

MorbarkModel M20R -Forestry Whole Tree Drum Chipper

SHARE

The hard-working, aggressive M20R Forestry chipper provides optimal performance for in-woods chipping. Easily filling a 53′ (16.15 m) trailer and sustaining up to four to five loads per day, this hard-working, aggressive chipper is the perfect option for those looking to enter the biomass market with low startup costs. This machine features the Advantage 3 Drum and electronic flow control to control feed speed from the remote. Tough, abrasion-resistant AR-450 steel is used for the drum skin, replaceable belly band, discharge chute and wear strips beneath the bed chain, providing strength and long wear life.

Most popular related searches
Infeed Deck

A 6′ (1.83 m) feed bed with live chain drive, tilted downward at 4° angle, provides efficient feeding of tree-length material.

  • Chipping Capacity 20", 50.8 cm
  • Height Wheeled 11`, 3.35 m
  • Width Wheeled 8`, 2.44 m
  • Length Wheeled 26`8", 8.12 m
  • Height Tracked 11`5", 3.48 m
  • Width Tracked 8`6", 2.59 m
  • Length Tracked 22`9", 6.93 m
  • Gross weight (approximate) Wheeled 18,000 lb, 8,165 kg
  • Gross weight (approximate) Track 26,540 lb, 12,040 kg
  • Suspension Torsion 20,000 lb, 9,071 kg
  • Infeed opening 65″ wide x 43″ high, 165 cm x 109.22 cm
  • Throat opening 28″ wide x 20″ high, 71.12 cm x 50.8 cm
  • Drum 33.325″ wide x 36″ diameter, 84.77 cm x 91.44 cm
  • Engine CAT
  • Horsepower 415 HP, 309 kW
  • Fuel capacity (tank) 65 gallons (wheeled)/74 gallons (tracked), 246 litres (wheeled)/280 litres (tracked)
  • Hydraulic oil capacity 44 gallons (wheeled)/56 gallons (tracked), 166 litres (wheeled)/212 litres (tracked)
  • Frame 2″ x 10″ tubular, 5.08 cm x 25.4 cm
  • Tires (4) 235/75×17.5, 16-ply
  • Hitch 3″ Pintle Ring, 7.62 cm
