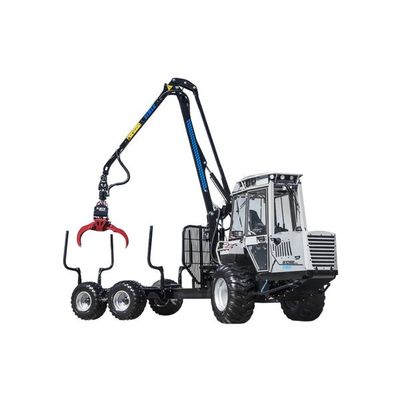

Vimek - Model 610 SE -Forwarder
Vimek 610 SE is our most powerful forwarder with 5,000 kg loading capacity, equipped with the new powerful Common Rail engine at 68 Hp Stage 3B/4 Final, modern hydrostatic transmission from Bosch Rexroth in combination with our well known trailer and crane. In the Vimek 610 SE we have been able to combine an engine and transmission to offer high efficiency, productivity, performance. All this together with low fuel consumption, makes a cost effective machine.
Most popular related searches
Technical specifications :
- Motor : CAT C2,2T CRDI 50 kW
- Transmission : Hydrostatic / mechanical
- Ground clearness : 40 cm
Dimensions :
- Length : Standard 6,90 m (load length 3,30 m, loading area 1,85 m²)
- Long 7,60 m (load length 4,00 m, loading area 1,65 m²)
- Width : 1,90 m or 2,00 m
- Weight incl. crane : 4,910 Kg
- Loading capacity : 5,000 kg
Crane :
- Model : Vimek - Mowi P25
- Vimek - Mowi P25T (option)
- Max. reach : 5,20 m
- 6,55 m (Mowi P25T)
- Lifting capacity : 5,20 m, 400 kg
- Gripping area : 0,16 m²
Accessory :
- Clamshell bucket :
- Weight : 130 kg
- Max. opening : 1300 mm
- Speed : 50 mm
- Volume : 125 liters
