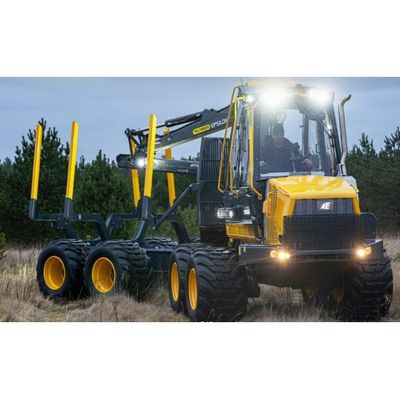

Eco-Log - Model 1050F - Forwarder

Thanks to their low weight, great stability, and superb mobility, Eco Log forwarders have everything you need for effective forwarding with the environment always high on the agenda.

• Loading capacity of 12.5 tonnes.
• Together with the narrow cab, the short engine hood offers the operator exceptionally good visibility of the entire work area.
• Due to their low weight, Eco Log´s smaller forwarders allow low fuel and energy consumption, a high load index, and low forest impact as they make their way through the woods with minimal ground damage even in sensitive and soft terrain.
• The optional bogie lift for the cab section gives you a flexible machine with wheels that can be raised by means of a cylinder.
• Locking the bogie enables work to be conducted with great stability whatever the circumstances.

Eco Log 1050F was previously part of the Gremo product range.

• Load capacity, kg (lbs) : 10500 (23149)
• Dimensions
• Weight, kg(lbs) : 12 500 (27558)
• Width (A), mm (in) : 2 580* (102)*
• Height (B), mm (in) : 3660 (144) - FC8, 3500 (138) - tilt
• Length (C), mm (in) : 8240 (324)/ 8925 (351)
• Ground clearance (D), mm (in) : 577 (23)
• Length loading bay (E), mm (in) : 3852-4549 (152-179)
• Approach angle, ° : 32,5 (37 boggie lift)
• Engine
• Type : 4-cyl. Cummins - B4,5 l
• Fulfils emission requirements of : EU Stage V, US EPA Tier 4(f)
• Power, kW (hp) : 129 kW (173)
• Torque, Nm (lb-ft) : 780 (575) at 1500 rpm
• Capacity, fuel tank, l (gal US) : 123 (32)
• Transmission
• Type : Hydrostatic-mechanical
• Tractive effort, kN (lbf) : 140 (31473)
• Speed, km/h (mph) low gear : 8,3
• Speed, km/h (mph) high gear : 20 (12)
• Hydraulics
• Pump, cc (cu in) : A10 - 110 cc (6,7)
• Pressure, bar (PSI) : 235 (3408)
• Hydraulic tank, l (US gal) : 130 (34)
• Wheels
• Standard : 600/50-22,5”
• Option : 710/40-22,5”
