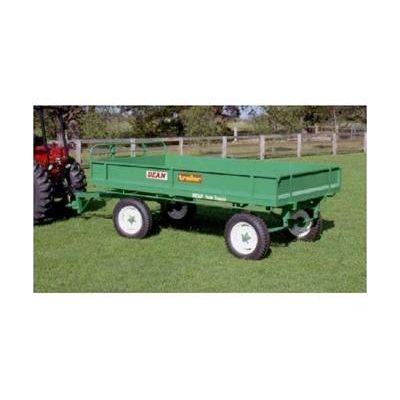

Dean - Model 06 - Four-Wheel 3-Tonne Capacity Farm Trailer
No 6 General purpose 4 wheeler, turntable front axle, 3 tonne capacity, 3.6m x 1.8m tray.
Most popular related searches
CAPACITY
- Load capacity: 3.0 tonne
- ATM: 3.8 tonne
- Tare Weight: 0.8 tonne
DIMENSIONS
- Length Overall: 4.6m
- Width Overall: 1.9m
- Tray Size: 3.6m long x 1.8m wide
- Side height: 350mm high
SPECIFICATIONS
- Tipping mechanism: Non Tipping
- Headboard: 25mm diameter tube
- Sides: Drop and removable
- Tailgate: Bottom hinged with manual lock
- Tie rails: 21mm diameter tube welded to sides
- Suspension: Front axle turntable with draw bar and 7 leaf spring
- Rear axle 50mm square solid steel with 7 leaf spring
- Wheels: 16 x 5 stud - white
- Tyres: 6.50 x 16 x 10 ply
- Jack stand: None
- Coupling: Swivel ball end to suit 25mm pin
- Brakes: Unbraked
EXTRAS
- Optional extras: Mounted spare wheel and tyre
- Full galvanised finish
