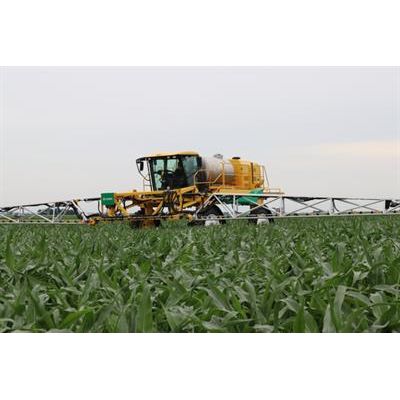

Oxbo - Model 7550 -Front Boom Sprayer
FromOxbo
Oxbo has operated one of the nation’s largest and most successful dealer networks of front boom, high clearance sprayers for almost 20 years. We are excited to introduce the Oxbo 7550, high clearance sprayer. The 7550 offers a high capacity tank with a productive boom for all your spraying needs. Oxbo is dedicated to providing quality equipment with dedicated local technical support.
Most popular related searches
- Single-pass cooling system
- 9-section boom for less overlap
- 1200 gallon stainless steel tank
- High capacity Hypro 9307 pump with wet-seal protection
- Electric product rinse system
- Millennium aluminum one-piece, top cap boom
- Boom blowout
- Premium Class cab with Bluetooth
- Luxurious design cab with category 4 air filtration system
- Hydrostatic, full-time 4 wheel drive
- Full 77" of ground clearance; highest in the industry
Dimensions
- Length: 31ft 8in (9.65m)
- Width (chassis only): 13ft (3.96m)
- Width (including 120` boom): 15ft 6in (4.72m)
- Height: 13ft 4in (4.06m)
- Wheelbase: 15ft (4.57m)
- Wheel track adjustment: 120in - 160in (3.05 - 4.06m)
- Ground clearance: 6ft 5in (1.93m)
- Turning radius: 32ft (9.75m) 2-wheel steer (measured at center line of sprayer)
- On-board air compressor: Single dryer, 40L tank, 26.5 Cfm@ 1500rpm
- Wash water: Integrated hand-washing tank
- Lights: Halogen cab lights, hood, and side platform
Engine
- Type, brand: Scania DC09, Tier 4F
- RPM values at working speed: 1750rpm
- Displacement: 5 cylinder, 9.3L
- Alternator: 100amp. 24 volt
- Horsepower: 316HP rated (232.42kW)
- Cooling fan: Hydraulically driven
Tires
- Front, rear: Goodyear VF380/90R46
- Rating: Ultra sprayer - 173 load rating
- Rim: 2 piece
Drive train
- Drive train type: Hydrostatic, full-time 4 wheel drive
- Shifting: Electro-hydraulic
- Spray Speed: 15-18mph (24.14 - 28.97 km/hr)
- Maximum transport speed: 30 mph (48.28km/h)
- Final drives: Danfoss variable motors, Fairfield gearboxes
Capacities
- Fuel tank: 134gal (507.25L)
- DEF tank: 10gal (37.85L)
- Solution tank: 1200gal Stainless steel (4,542.5L)
- Rinse tank capacity: 100gal (378.5L)
Solution System
- Boom plumbing: Premium 304 Stainless pipe
- Boom height range: 20 - 99in (0.51 - 2.52m)
- Pump: Hypro 9307C
- Boom (standard): 120` Millennium aluminum
Precision Equipment
- Rate control module (standard): Raven
- Display options: Ag Leader, Raven
- Auto-steer options: Ag Leader, Raven
- Boom height control option: Raven UltraGlide boom height
