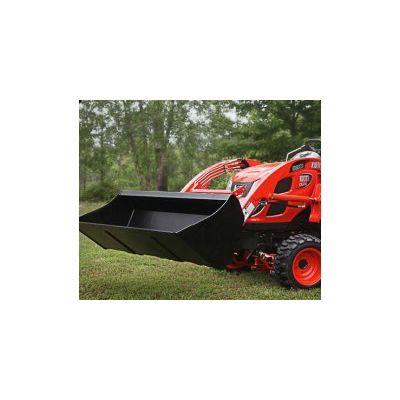

Kioti - Model SL2410 - Front End Loaders
Specifications may vary with tractor model, front axle configurations, tire size option and type of attachment and are subject to change without notification.
Most popular related searches
- Maximum Lift Height 71.3" (1,810 mm)
- Clearance w/ Attachment Level 64.5" (1,638 mm)
- Clearance w/ Attachment Dumped 51" (1,295 mm)
- Reach at Maximum Height 26.7" (678 mm)
- Maximum Dump Angle 45°
- Reach w/ Attachment on Ground 52.4" (1,332 mm)
- Maximum Rollback Angle 27°
- Digging Depth Below Grade 5.1" (130 mm)
- Overall Height in Carry Position 36.4" (925 mm)
- Depth of Attachment (to back of inner shell) 19.9" (507 mm)
- Height of Attachment 18.1" (459 mm)
- Length of Attachment (to pivot pin) 23.1" (588 mm)
- Bucket Size 48"
- Relief Valve Setting (Loader Control Valve) 130~135 kg/cm2
- Rated Flow (Tractor System) 3.5 gpm (13.4 L/min)
- Lift Capacity to Full Height at Pivot Pins 675.3 lbs. (306.3 kg)
- Breakout Force at Pivot Pin 1,332 lbs. (604 kg)
- Arched low profile maximizes operator`s visibility and is well matched with unique hood style.
- Entire loader (except mounting) can be quickly detached from tractor.
- A built-in parking stand on the front end loader provides quick and easy connection.
- Parking stand comes standard.
- Mid-mount style frame for engine accessibility.
- Color complements KIOTI tractor.
